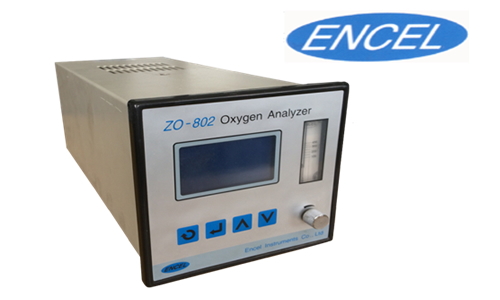

Specification of ENCEL O2 analyzer
• Adopt good quality of zirconia testing elements long-life and fast response
• Big screen liquid crystal display to indicate oxygen content , temperature, data , time etc.
• Real-time clock display
• You can set upper and lower limit alarm
• The instrument has automatic calibration function to ensure a long measurement accuracy
• 0 – 10 or 4 – 20 mADC isolated signal output
• Measuring range: 0.10 ppm~ 50% O2 Auto ranging grade 0.1 ~ 10 ppm, 0 ~ 100 ppm, 0 ~ 1000 ppm, 0 ~ 1%, 0 ~ 5%. 0 ~ 10%, 0 ~ 25%, 0 – 50%
• Accuracy: ± 0.3% FS (100 ppm) ; ± 0.5% FS (≤100 ppm)
• Repeatability: 1.5%
• Response time: ≤ 30 seconds
• Sample gas pressure: less than 0.2Mpa
• Sample gas flow rate: 250 ml / min.
• Inlet temperature: 0 ~ 40 ?
• Ambient temperature: 0 ~ 40 ?
• Dimensions: 144 × 144 × 330mm (width × height × depth)
• Rechargeable Battery: charging time can be used continuously for 24 hours
• Charging power supply: 220VAC ± 10%, 50HZ ± 1HZ
• Instrument Weight: 7.0kg
