Phụ Tùng Belliss & Morcom All

Hãng sản xuất: Belliss - Morcom

Phụ tùng cho tất cả máy nén khí thổi chai PET của Belliss & Morcom
Belliss & Morcom Parts list
VH9H3N; VH15H3N MK 2 ; VH15H3N MK1 ; VH18H3N ; VH21H3N MK1; VH21H3N MK2 ; VH25H3N ; WH28H3N ; WH29H3N ;WH35H3N ; WH40H3N ; WH45H3N ; WH50H3N ; WH100H3N

Thông tin sản phẩm
Bình luận

Belliss& Morcom Parts list

Part Code	Customer Ref.	Material	weight kg
4	194r unloader spring (PSB027-181)
50	spacer
513	COOLER - 126 TUBESTACK
765	2nd stg top cover WH50
6100600	Drain trap 1/2" airodyn 63barg-400c-DN15
91894703	92FDR Del stud (52-55H233)
069-02	Crosshead 2nd stage assy
1002-2116	110GD Delivery stud
105R DS	105R Delivery seat stainless steel
105R SS	105R Suction seat stainless steel
12MM X 1.75 STUD	105R DELIVERY STUD
16MM WASHER	Plain 16mm washer
2-01-304-02	3rd stg Inlet / outlet VH15H3N HI TEMP 1.5MM	Graphoil PSM 1.5
2-01-310-04	no quote
2-01-431-01	1ST STAGE CYLINDER VH21/VH28/WH56/WH28H3N
2-01-431-01A	1ST STAGE CYLINDER VH21/VH28/WH56/WH28H3N used and overhauled
2-01-431-01-MC	1ST STAGE CYLINDER VH21/VH28/WH56/WH28H3N
2-01-431-01-RC	1ST STAGE CYLINDER VH21/VH28/WH56/WH28H3N-RE-LINED
2-01-432-01	2ND STAGE CYLINDER VH21N/VH28/WH28H3N
2-01-432-01-RC	2ND STAGE CYLINDER VH21N/VH28/WH28H3N RE-LINE
2-01-432-05	2nd stg top cover gasket GRAPHOIL 008-003	Graphoil PSM 1.0MM
2-01-434-01-RC	VH21H3N 2nd stg cyl re-line
2-01-443-01-MC	1st stg cylinder VH21H3N MK2
2-01-481-01	3RD STAGE CYLINDER WH28H3N	cast iron	560
2-01-481-01-MC	WH28H3N 3rd stg cyl machine and testcyl re-line
2-01-481-01-RC	WH28H3N 3rd stg cyl re-line
2-01-481-04	Joint 3rd stg inlet / outlet
2-01-513-01	WH29H3N 1st stg cylinder
2-01-513-01-RC	WH29H3N 1st stg cylinder-relined
2-01-531-01	WH40H3N 2nd stg cylinder
2-01-531-01-RC	WH40H3N 2nd stg cylinder re-line
2-01-544-02	Joint 1st stg cylinder
2-01-546-02	Joint 2nd stg cylinder
2-01-570-01	1st stg cylinder
2-01-570-02	Joint 1st stg top cover graphoil	Graphoil PSM 1.5MM
2-01-570-03	Gasket outlet flange
2-01-570-04	Joint 1st stg inlet	C4324 1mm
2-01-570-05	joint 1st stg outlet VH9 + 15	Graphoil PSM 1MM
2-01-571-01	2nd stg cylinder
2-01-571-02	joint 2nd stg top cover VH9H3N	C4324 2.0MM
2-01-571-04	Joint 2nd stg del flange	C4324 1.0MM
2-01-571-04/GRAPHOIL	Joint 2nd stg del flange	Graphoil PSM 1.5MM
2-01-572-01	3rd stg cylinder , no supplier
2-01-572-03	VH9H3N 3rd stg Head O-ring	rubber product
2-01-572-04	Viton o-ring
2-01-575-01	1ST STAGE CYLINDER VH15H3N
2-01-575-02	1st stg top cover gasket VH15+21H3N Graphoil 1.0MM	Graphoil PSM1.0
2-01-575-02/GRAPHOIL	1st stg top cover gasket VH15+21H3N Graphoil 1.0MM	Graphoil PSM1.0
2-01-575-03	inlet cylinder flange gasket
2-01-575-04	outlet cylinder flange gasket	C4324 1.0MM
2-01-576-02	joint 2nd stg top cover VH15	Graphoil PSM 2.0MM
2-01-576-02/GRAPHOIL	joint 2nd stg top cover VH15 HI TEMP 2MM	Graphoil PSM 2.0MM
2-01-576-03	Joint 2nd stg air outlet VH15	C4324 1.0MM
2-01-576-03/GRAPHOIL	Joint 2nd stg air outlet VH15 HI TEMP 1MM	Graphoil PSM 2.5MM
2-01-576-04	1ST STAGE AIR OUTLET VH15H3N
2-01-643-01	VH9 3rd stg cylinder
2-01-643-04	3rd stg water o-ring VH9 + 15	rubber product
2-01-648-01	3rd stg cylinder VH15H3N
2-01-648-01-RC	VH15H3N 3rd stg cyl re-line
2-01-648-01-RC	3rd stage cylinder VH15H3N
2-01-702-03	1st stg cyl head joint WH35H3N
2-01-763-04	1ST STAGE INLET/OUTLET
2-01-797-01-RC	WH40H3N 1st stg cylinder re-line
2-01-809-01	1stg stg cylinder WH40H3N
2-01-831-01	1st stg cylinder VH21H3N MK2
2-01-842-01	2nd stg cylinder
2-01-842-01-RC	VH21H3N 2nd stg cyl re-line
2-01-842-02	Cylinder joint GRAPHOIL 1.5MM	Graphoil PSM 1.5MM
2-01-842-02	Joint cylinder Graphoil 1.5thick 2nd stg VH21H3N	Graphoil PSM 1.5MM	0.25
2-01-842-03	Joint 2nd stg inlet Graphoil 1.0mm	Graphoil PSM 1.0MM
2-01-842-04	Joint 2nd stg outlet GRAPHOIL 1.0MM	PSM 1.0
2-01-843-02	joint 3rd stg inlet / outlet	Graphoil PSM 1.0MM	0.05
2-01-880-01	1st stage Cylinder WH50H3N
2-01-880-02	WH50H3N Top cover joint	Graphoil PSM 1.0MM
2-01-882-01	2nd stg cylinder WH50
2-01-882-02	Top cover joint GRAPHOIL	Graphoil PSM 1.0MM
2-01-883-01	3rd stg cylinder WH50H3N
2-01-883-03	Joint water cover
2-01-888-01	3rd stg cylinder VH21H3N 142MM BORE
2-01-888-01-RC	VH15H3N 3rd stg cyl re-line
2-01-908-01	no quote
2-01-908-01-RC	WH40H3N 1st stg cylinder re-line
2-03-166-03	thrust washer
2-03-303-01	WH50H3N Crankase
2-03-310-01	Crankcase possible VH9H3N
2-04-045-02	3rd stg top cover o-ring
2-04-259-01	TOP COVER 1ST STG CYLINDER
2-04-259-01A	USED TOP COVER 1ST STG CYLINDER
2-04-260-01	CYL HEAD HP VH21/VH28/VH29 METRIC
2-04-274-01	2nd stg top cover WH40H3N
2-04-303-01	1st stg top cover VH9H3N
2-04-304-02	Joint 3rd stg inlet / outlet VH15	Graphoil PSM 1.5MM
2-04-305-01	CYL HEAD 3RD STAGE WH28H3N /WH29	cast iron	55
2-04-333-01	Top cover?
2-04-334-01	Top cover
2-04-431-01	Top cover VH21H3N, SEE NOTES
2-04-452-01	Top cover 1st stg WH50H3N
2-04-453-02	3rd stg cover o-ring
2-04-454-01	TOP COVER
2-05-081-02	CONN ROD BOLT (V)
2-05-081-03	CONN ROD NUT (V)
2-05-087	Conn rod assy small V
2-05-089-02	Bottom end bearing
2-05-089-03	top end bearing bush
2-05-090	Conn rod assy
2-05-090-01	Conn rod assy large bush	cast iron	37.8
2-05-090-01/MACHINING	Machine only	cast iron	37.8
2-05-090-02	CONN ROD BOLT WH200 2nd STAGE	steel	1.5
2-05-090-03	nut bottom end	steel	0.3
2-05-104-02
2-06-289-03	Flex coupling bush ( 8pc in a set)
2-06-310-02	Driving Dog
2-06-312-02	Motor key
2-06-315-01	Crankshaft V Range
2-06-315-02	OIL THROWER
2-06-383-01	W - Crankshaft
2-07-280-01	crosshead guide	cast iron	57
2-07-280-01A	crosshead guide GOOD USED
2-07-306-01	1st stg guide VH9H3N
2-07-419-01	Main guid assembly possible VH9H3N
2-07-487-01	Distance piece & crosshead guide WH50H3N
2-121-001-09	Piston nut 3rd stage
2-123-001	Gasket inlet & delivery
2-13-292-01	Flywheel possible VH9H3N
2-13-292-01	Flywheel possible VH9H3N
2-136-001	Temperature gauge and thermo well
2-136-01	Temperature gauge
2-25-109-02	clamping ring
2-28-109-02
2-28-289-01	Possible 1st stg piston WH29H3N
2-28-310	VH60N 1ST STAGE PISTON
2-28-336	2ND STAGE PISTON ASSY VH60N
2-28-385	1ST STAGE PISTON NON-LUBE VH28N/VH100N & WH200N
2-28-385-01	1ST STAGE PISTON TOP HALF VH28N/VH100N & WH200N
2-28-387	1ST STAGE PISTON LUBE VH75L/VH21L/WH42L
2-28-387-02	1ST STAGE PISTON BOTTOM HALF VH21/VH75
2-28-388-02	2ND STAGE PISTON BOTTOM HALF VH21/VH75
2-28-389-01	1ST STAGE PISTON TOP HALF VH75N/VH21N & WH150N
2-28-390	2ND STAGE PISTON NON-LUBE VH21N/VH75N
2-28-390-01	2ND STAGE PISTON TOP HALF VH21N/VH75N
2-28-419-02	1ST STAGE PISTON BOTTOM HALF WH28H3N
2-28-420	1ST STAGE PISTON WH28H3N/WH100H3N/WH56N
2-28-420-01	1ST STAGE PISTON TOP HALF WH28H3N
2-28-421-01	old design piston no quote
2-28-421-02	Piston bottom half 2nd stg
2-28-422	2ND STAGE PISTON ASSY
2-28-422-01	Piston top half 2nd stg
2-28-428	2ND STAGE PISTON WH28 & 29 & 100H3N	CAST IRON	33
2-28-430-01	3rd STAGE PISTON WH28 & 29 & 100H3N	CAST IRON	17
2-28-438	VH16N LP Piston
2-28-438-01	VH16N LP PISTON TOP HALF
2-28-438-02	VH16N LP PISTON BOTTOM HALF	cast iron
2-28-439-01	VH16N HP PISTON TOP HALF
2-28-439-02	VH16N HP PISTON BOTTOM HALF
2-28-481	Piston assy
2-28-481-01	piston top half	cast iron
2-28-481-01/02	Piston top and bottom
2-28-481-02	piston bottom half	aluminium
2-28-481-03	2nd stg Rider ring WH40H3N
2-28-481-04	2nd stg Piston ring WH40H3N
2-28-489	Piston 1st stg WH29H3N	aluminium
2-28-489-01	WH29H3N 1st stg piston top
2-28-489-02	WH29H3N 1st stg piston bottom
2-28-506	1st stg piston VHA6N
2-28-523	3rd stage WH28 piston assy
2-28-534-01	VH9H3N 1st stg piston top
2-28-534-02	VH9H3N 1st stg piston bottom
2-28-534-03	VH9H3N 1st stg piston ring
2-28-534-04	VH9H3N 1st stg rider ring
2-28-535-01	VH9H3N 2nd stg piston
2-28-535-02	VH9H3N 3stg piston MR1 ??
2-28-535-03	3rd stage piston cap VH9H3N
2-28-535-04	3rd stage piston washer VH9H3N
2-28-535-05	VH9H3N 2nd stg piston ring
2-28-535-06	VH9H3N 2nd stg rider ring
2-28-535-07	VH9H3N 3rd stg piston ring
2-28-535-08	VH9H3N 3rd stg rider ring
2-28-539-01	Top half piston VH15H3N
2-28-539-02	Bottom half piston VH15H3N
2-28-539-03	piston ring 1stg VH15H3N
2-28-539-04	rider ring 1st stg VH15H3N
2-28-540-01	2nd stg piston VH15H3N m1
2-28-540-02	3RD STAGE PISTON VH15H3N
2-28-540-04	piston ring 2nd stg VH15H3N
2-28-540-05	rider ring 2nd stg VH15H3N
2-28-540-08	piston ring 3rd stg VH15H3N
2-28-540-09	rider ring 3rd stg VH15H3N
2-28-620	WH35H3N 1st stg piston assy
2-28-621	WH35H3N 2nd stg piston assy
2-28-642-01	valve ?
2-28-660	1st stg piston WH40H3N
2-28-660-01	1st stg top piston WH40H3N	aluminium	35 ?
2-28-660-02	1st stg bottom piston WH40H3N
2-28-660-03	1st stg piston ring WH40H3N	HY22
2-28-660-04	1st stg rider ring WH40H3N	HY22
2-28-668-02	3RD STAGE PISTON VH9H3N
2-28-669-02	3RD STAGE PISTON VH15H3N
2-28-707-01	3rd stg piston VH9H3N suggest you also take 2-28-687-01 cap
2-28-747	Piston top and bottom
2-28-747-01	VH21H3N 1st stg top half piston
2-28-747-02	VH21H3N 1st stg bottom half piston
2-28-764	VH21H3N st stg piston assy
2-28-764-03	piston ring 1st stg VH21H3N MK1 + 2
2-28-764-04	rider ring 1st stg VH21H3N MK 1 + 2
2-28-765-02	3rd stage piston VH25H3N
2-28-765-03	piston ring 2nd stg VH21H3N	PTFE
2-28-765-04	piston ring 3rd stg VH21H3N	BMT
2-28-765-05	rider ring 3rd stg VH21H3N	BMT
2-28-776-02	3rd stg piston ring
2-28-793	WH50H3N 1st stg piston, use 2-28-834
2-28-793-03	rider ring 1st stg WH50H3N
2-28-793-04	piston ring 1st stg WH50H3N
2-28-793-assy	1st stg WH50H3N Piston
2-28-794	WH50H3N 2nd stg piston
2-28-794-03	rider ring 2nd stg WH50H3N
2-28-794-04	piston ring 2nd stg WH50H3N
2-28-795-01	WH50H3N 3rd stg piston
2-28-795-02	piston ring 3rd stg WH50H3N
2-28-795-03	rider ring 3rd stg WH50H3N
2-28-833-01	2nd & 3rd stg piston
2-28-833-02	PISTON TOP CAP VH21H3N 3RD
2-28-833-03	PISTON BOTTOM VH21H3N 2ND STAGE
2-28-833-04	2nd stg piston ring VH15 + VH21 MK2
2-28-833-05	2nd stg guide ring VH15 + VH21 MK2
2-28-833-06	3rd stg piston ring VH15 + VH21 MK2
2-28-833-07	3rd stg guide ring VH15 + VH21 MK2
2-28-833-08	PISTON BOTTOM VH21H3N 2ND STAGE
2-28-833-08	piston bottom 2nd stg
2-28-833-09	2nd & 3rd stg piston
2-28-833-09	piston top 2nd/3rg vh21h3n
2-28-834	WH50H3N 1st stg piston
2-30-134-01	Piston rod
2-30-134-ASSY	Piston Rod and Nuts assy
2-30-136-01	Piston rod 3rd stage possible WH100H3N	various steel	12
2-30-144	Piston rod assy	various steel	12
2-30-144-01	Piston rod	EN STEEL	10
2-30-148-01	WH42L 1ST & 2ND Stage rods
2-30-154	Piston rod assy
2-30-154-01	piston rod
2-30-162	piston rod assy
2-30-162-01	piston rod
2-30-182-01	Piston rod VH16MK2
2-30-194-01	Piston rod VH16MK2 STAINLESS
2-30-202	Piston rod assy 3rd stg WH28H3N	various steel	13
2-30-202-01	Piston rod 3rd stg WH28H3N	carbon steel	11
2-30-252	Piston rod assy
2-30-252-01	PISTON ROD - 1ST STAGE
2-30-297-01	Piston rod 2nd stg VH21H3N
2-30-320	Piston rod -1st & 2nd stage VH21H3N	various steel
2-30-320-01	Piston rod -1st & 2nd stage VH21H3N
2-30-324	piston rod 1st stg WH50 assy
2-30-324-01	piston rod 1st stg WH50
2-30-325-01	piston rod 3rd stg wh50
2-31-041-01	Crosshead
2-31-041-02	Conn rod pin 2.500"
2-31-045-01	CROSSHEAD
2-31-045-02	CROSSHEAD PIN (W) 2ND STAGE ONLY
2-31-046-02	CROSSHEAD PIN VH16N
2-31-046-03	SECURING PIN VH16N
2-31-050-01	Crosshead assembly
2-31-050-02	CROSS HEAD PIN
2-31-050-ASSY	Crosshead assy
2-31-052-04	Securing Pin
2-31-066	Crosshead assembly 1st & 2nd stg W	cast iron	20
2-31-066-01	CROSSHEAD 2ND STAGE W	cast iron	20
2-31-067-01	Crosshead
2-31-067-01-ASSY	CROSSHEAD 3RD STAGE ASSY
2-34-459-05	Oil cooler
2-34-562	OIL COOLER BLOCK ADAPTOR
2-34-562-03	OIL COOLER INLET HOSE
2-34-562-04	OIL COOLER OUTLET HOSE
2-45-1678-06	1 1/4" BSP GLOBE VALVE
2-45-1890	4" NB st/st assy flanged PN64 swivel both ends
2-45-2190-01	flexible hose size ???
2-45-2375-01	flexible hose 1 x 3/4"
2-45-2375-02	flexible hose 1 x 3/4"
2-45-2515-04	1 1/2" BSP flow indicator
2-46-1253-02	pressure gauge 0-7 bar/psi 63mm glycerin rear entry
2-46-1253-03	pressure gauge 0-28 bar/psi 63mm glycerin rear entry
2-46-1253-04	pressure gauge 0-70 bar/psi 63mm glycerin rear entry
2-63-069-02	Scraper box gasket	C4324 0.5MM	0.002
2-63-079-01	Complete packing box
2-63-079-01	Piston rod scraper wearing parts
2-63-079-01WP	Packing ring set
2-63-079-02	Packing ring set
2-63-092-02	Packing ring set
2-63-103-01	Housing extension
2-64-135	PACKING BOX
2-64-167-01	Packing box
2-64-285	PACKING BOX
2-64-286	PACKING BOX
2-64-407	WEARING PARTS SET
2-64-415-01	Thermosleeve Packing
2-68-642-01	Solenoid Valve DC Coil 110VAC
2-68-642-01	Solenoid Valve DC Coil 110VAC
2-68-642-02	solenoid valve
2-68-642-02	solenoid valve
2-70-126-01	SUCTION LANTERN
2-70-126-02	Suction valve cover
2-70-127-02	Delivery valve cover
2-70-129-02	134R DELIVERY CAGE PSB030-002
2-70-150-02	3rd stage suction valve cage
2-70-150-03	3rd stage suction valve cover
2-70-151-02	3rd stage delivery valve cage
2-70-151-03	3rd stage delivery valve cage
2-70-175-03
2-70-196-04	valve cage o-ring
2-70-207-01	Valve spacer
2-70-210-03	Disc spring
2-70-211-01	134r Suction assy & unloader	Carbon steel	2.5
2-70-211-01-RK	134r Suction Valve repair kit
2-70-212-01	105r Delivery assy	stainless steel	2
2-70-212-01-RK	105r Delivery Valve repair kit
2-70-212-04	disc spacer
2-70-213-02	spacer
2-70-215-02	o-ring Valve cage 3rd stg suction VH9H3N	rubber product
2-70-216-02	o-ring Valve cage 3rd stg delivery VH9H3N	rubber product
2-70-280-01	Main guide 28/29/35/40	Viton Rubber
2-70-310-04	1st Suction valve cage Belliss o-ring	Viton Rubber
2-70-310-05	1st Delivery valve cage Belliss o-ring	Viton Rubber
2-70-419-04	actuator
2-70-467-01	92fdr suction BOC 1st stg
2-70-468-01	92fdr delivery BOC 1st stg
2-70-469-01	92fdr suction BOC 2nd stg
2-70-470-01	92fdr delivery BOC 2nd stg
2-70-517-01	110gd Suction assy & unloader	stainless steel	5
2-70-517-01-RK	110gd Suction Valve repair kit
2-70-518-01	110gd Delivery assy	stainless steel	3
2-70-518-01-RK	110gd Delivery Valve repair kit
2-70-524-01	suction valve lantern
2-70-553-01	134r Suction assy & unloader	stainless steel	3
2-70-553-01-RK	134r Suction Valve repair kit
2-70-554-01	2nd stg delivery lantern VH15H3
2-70-641-04	actuator
2-70-649-02	110gd Suction assy & unloader	stainless steel	3
2-70-649-02-RK	110gd suction valve repair kit
2-70-650-01	Valve cage cover
2-70-650-02	110gd Delivery assy	Stainless Steel	3
2-70-650-02-RK	110gd Delivery Valve repair kit
2-70-717-01	110GD valve plate
2-70-717-03	110gd Damper plate 2-70-717-03 & QAP13-70-8767D
2-70-738-02	134r delivery
2-70-755-01	194r Suction Assy	stainless steel	10
2-70-755-01-RK	194r suction repair kit
2-70-756-01	194r Delivery assy	stainless steel	8
2-70-756-01-RK	194R Delivery repair kit
2-71-354	Intercooler assembly ,With Tube stack PSB033-018
2-71-354-01	Cooler body (PSB033-008)
2-71-465-01	Cooler brass ring
2-71-513-01	COOLER - 52 TUBESTACK RING VH16N
2-71-524-03	1st/2nd Stage Intercooler VH9 MK 1
2-71-524-05	BELLISS JOINT	C4324 1.0MM
2-71-524-06	separtor outlet gasket	C4324 1.0MM
2-71-525-06	2nd stage joint	C4324 1.0MM
2-71-525-07	joint	C4324 1MM
2-71-525-15	DRAIN TRAP
2-71-530-03	1st stg Intercooler VH15H3N MRK 1
2-71-530-05	1st stg intercooler in/out joint
2-71-531-04	2nd stg Intercooler VH15H3N MRK 1
2-71-531-10	2nd stg intercooler in/out joint
2-71-560-03	2nd stg cooler VH9H3N
2-71-560-04	BELLISS JOINT
2-71-561-01	1st stg cooler VH9H3N
2-71-578-02	2nd stg cooler WH35
2-71-579-02	1st stg cooler WH35
2-71-582-07	joint
2-71-637-02
2-71-638-01
2-71-713-01	1st stage old style VH21H3N COOLER
2-71-738-02	1st stg intercooler VH9H3N
2-71-738-04	Joint intercooler Graphoil 2mm	Graphoil PSM 2.00
2-71-739-02	VH9 2nd stg intercooler
2-71-757-02	WH50H3N 1st INTERCOOLER ASSEMBLY
2-71-758	WH50H3N INTERCOOLER ASSEMBLY
2-71-758-02	wh50h3n 2nd stg cooler
2-71-766-02	1st stg intercooler (fixed stack)	various	94
2-71-766-02	1st stg intercooler
2-71-768-01	Motorised ball valve 1/2"bspn 110v JORC4008
2-71-780-01	1st stage seperator
2-71-781-01	2nd stage seperator
2-71-801-02	2nd stg intercooler (fixed stack)	various	90
2-71-801-02	2ND STAGE INTERCOOLER VH15H3N
2-71-801-05	joint 2nd stg pipe work
2-71-802	WH40H3N cooler, PSB033-001 + housing
2-71-803	WH40H3N cooler, PSB033-004 + housing
2-72-252	Coller body 9"
2-72-488-01	Use 2-72-252
2-72-572-07	Relief valve gasket
2-72-582-07	Joint	Graphoil PSM 2.00
2-72-582-08	separator final delivery gasket
2-72-587-11	Joint aftercooler
2-72-610-01	3rd stg cooler VH9H3N
2-72-643-02	VH21H3N Aftercooler
2-72-643-08	gasket intercooler
2-72-688-02	3rd stg cooler VH15H3N
2-72-688-06	Aftercooler Gasget Graphoil 3.0mm	Graphoil PSM 3.0MM
2-72-689	3rd stg aftercooer assembly
2-72-689-04	Joint aftercooler
2-72-689-05	3rd stg pipe gasket
2-72-694-02	3rd stage intercooler
2-72-698-04	Aftercooler gasket
2-72-702-02	Aftercooler WH50H3N
2-74-032-01	relief valve
2-74-033-01	2nd stg relief valve
2-74-033-01	relief valve
2-74-034-01	Safety relief valve
2-74-035-01	relief valve
2-74-037	Safety relief valve
2-74-037-01	Safety relief valve set pressure 2.8 barg 2"BSPT
2-74-038-01	Safety relief valve set pressure 11.4 barg 1 1/4" BSPT
2-74-043-01	Safety relief valve set pressure 43.5barg 1/2" BSPT
2-76-190	Gasket & O-ring kit VH21N
2-76-196	Gasket & O-ring kit MACHINE ??
2-76-241	Gasket & O-ring kit WH28 + 29H3N
2-76-335	Gasket & O-ring kit VH9H3N	Various
2-76-336	BELLISS JOINT & O RING SET VH15H3N
2-76-364	V Range intercooler gasket kit (126tube)
2-76-365	V Range aftercooler gasket kit (72tube)
2-76-381	Gasket & O-ring kit WH40H3N
2-76-397	Gasket & or-ng kit WH50 H3N
2-76-426	SEE 2-05-090 CONN ROD ASSY
2-84-003-01	1st & 2nd stg drain trap
2-84-005-01	3rd stg drain trap
2-89-002	2" Flanged Flow meter switch
3.0X18	PIN
31-277383-18Z	194r suction seat (PSB027-181)
31-277383-18Z-ASSY	194r suction seat & PINS(PSB027-181)
36-277273-18Z	194r delivery seat (PSB029-110)
36-277273-18Z-ASSY	194r delivery seat & stud assy
37-17020	194r 20mm suction bolt for assy PSB027-181
41-01048	194r unloader stop washer
45-00028	194r unloader bush holder
45-00060	194r unloader cap
50-039792	194r valve plate double arm hollow ground for DV
50-086358	110gd Damper plate 2-70-717-03 & QAP13-70-8767D
50-273218	92fdr suction seat
50-277389	110gd suction seat
50-471144	110GD valve plate 2-70-717-01 & QAP13-70-8767C
51-251532-0880	110GD Unloader
51-251532-0880-ASSY	110GD Unloader, clip and bush
51-279349-0990	194r unloader (PSB027-181) 55-00132
55-00132-ASSY	194r unloader, clip and bush
55-273216-18-ASSY	92fdrs Del seat & stud assy
59-277382-18-ASSY	110GD Del seat & stud assy
60-11H410	20MM SLF NUT
601-7034-100	Safety relief valve set pressure 47.8 1" BSPT
61-1211	Coil spring 61-1210
61-1613	Coil spring QAP13-70-8767E
61-547692	194R unloader spring 26-00048
61-II-3	Coil spring
82-433776-PK40	134CGDK	peek	0.05
85-433776-PK40	134CGK PEEK	peek	0.05
85-433777-PK40	194CRK PEEK	peek	0.05
85-434062-PK40	92CFK PEEK	peek	0.05
85-547654	194r unloader bush 45-01028
916042-03	79ED SUCTION BOLT
918936-03	79ED DELIVERY STUD
95BM-50-0010	194R Valve plate QAP13-70-8754A (50-057253) single arm hollow ground for SV	stainless steel	0.44
95BM-80-0020	110GD Unloader spring
A011005128	piston ring
A611005127	rider ring
ASB511-005	Air filter element	various	4.1
ASB511-018	Air filter element	various
ASB512-001	Air filter element	various
ASB525-001	SWITCH
ASB525-002	1 1/4" BSP WATER FLOW SWITCH
ASB525-004	1 1/4" BSP WATER FLOW SWITCH
ASB525-007	WATER FLOW SWITCH
ASB525-010	WATER FLOW SWITCH
ASB527-026	SOLENOID VALVE 24V DC WEBBER
C1003469	Aftercooler WH40
CC1003129	3rd stg top cover gasket	Graphoil PSM 1.5mm
CC1003469	Aftercooler WH29+40		140
CC1004009	FILTER ASSY OIL
CC1004014	Filter element
CC1011485	Scraper box
CC1011486	oil scraper wearing set	PTFE
CC1030341	WH40 2nd stg intercooler
CC1031931	WH28H3N Fixed tube stack
CC1032457	Gasket?
CC1037746	3rd stg piston ring	LONG LIFE
CC1037747	3rd stg rider band	LONG LIFE
CC1037748	PISTON RING 7.25"
CC1037749	RIDER RING 7.25"
CC1037750	PACKING SET
CC1037751	Packing case
CC1044733	3rd stg top cover gasket
CC1059867	1st stg suc WH45H3N	stainless steel	4.5
CC1059867-RK	1st stg suc WH45H3N
CC1059868	1st stg del WH45H3N	stainless steel	4
CC1059868-RK	1st stg del WH45H3N
CC1059912	Top cover gasket WH45H3N STG ??	Graphoil PSM 1.5MM
CC1061214	2nd stg intercooler wh45h3n
CC1061611	1st stg piston ring WH45H3N
CC1061612	1st stg rider ring WH45H3N
CC1091374	temp gauge 0-250c centre back
CC1099681	3rd stg piston ring VH15/21H3N LLM
CC1140263	Oil filter element joint ring
D1300-0550	Circlip for 194r PSB027-181, ZS0622
FMM-35-AL-LP-3EE-1CS-24W150-S1-D2	FLOW METER
GDF-P07/30	Filter
GDK07/30	Filter
GDU-P07/30	Filter	steel
JORC 4008	Motorised ball valve drain
M20 X 8" STUD	M20 X 8" STUD
MB005-02	Piston rod securing pin
MB005-06	Piston cap screws
MB005-26	bolt m8 x 1.25 x 70 long carbon steel	steel
MB006-12	Bolt m10 x 40
MB007-03	set screw M12 X 40
MB007-05	Bolt M12 X 35	steel
MB009-04	SETSCREW M16 X 2PITCH
MB009-11	bolt m16x2x60 long carbon steel	steel
MB011-22	M20 X 2.5 X 100 LONG BOLT
MB021-11	Nut packing box to cylinder M20
MB023-09	Dome nut M20
MB030-02	Locking washer
MB030-03	Tab locking washer	steel
MB030-06	Tab washer	steel
MB030-08	Tab locking washer	steel
MB040-15	Copper washer
MB040-18	COPPER WASHER
MB040-63	Washer
MB041-11	Copper washer 40X21X3MM
MB041-23	Copper washer
MB075-38	Split pin bottom end 5mm dia x 40mm
MB075-39	Split pin bottom end 5mm dia x 50mm
MB086-06	Stud M20 X 75 LONG
MB086-09	Stud M20 X 90 LONG
MB086-22	Stud M20 X 200LONG
MB088-15	Stud M24 X 129 LONG
MB101-03
MB106-05
MB108-05
MB108-06	Elbow
MB110-04
MB120-03	VALVE 1/2" CATl
MB130-01	OIL LEVEL WINDOWNUT
MB133-1	SIGHT GLASS - VH50HN		0.008
MB133-48	Valve cage o-ring	Viton rubber	0.008
MB133-49	Valve cage o-ring	Viton rubber	0.008
MB133-50
MB133-55	Valve cage o-ring	Viton rubber	0.007
MB133-56	Valve cage o-ring	Viton rubber	0.007
MB137-09	circlip
MB137-10	circlip
MB137-14	POSSIBLE CLIP ???
NSBP217-032	SECURING PIN - PISTON ROD
NSBP220-019	split pin
NSBP220-025	split pin
NSBP220-042	split pin
NSBP545-003	Piston ring	CAST IRON
NSBP545-007	Piston ring	cast iron
NSBP584-002	joint 2nd stg top cover VH50/60	C4324 0.8
NSBP584-002/GRAPHOIL	joint 2nd stg top cover VH50/60	PSM 1.5
NSBP588-002	JOINT - 2ND STAGE CYL INLET/OUTLET VH75N
NSBP588-006	BELLISS JOINT VH50N & VH60N
NSBP588-007	BELLISS JOINT VH50N & VH60N
NSBP592-001
NSBP592-002
NSBP624-001	OIL SCRAPER WEARING PARTS SET
NSBP625-003	WAVE SPRING FOR BELLISS VH60N SCRAPER BOX
NSBP628-006	JOINT
NSBP691-001	Joint crankcase door	N127 Nitrile cork 1.5mm
NSBP750-001	Diaphragm Port release Valve
NSBP761-003	Piston ring 1st stg VH60N
NSBP761-007	PISTON RING 2ND STAGE VH60N
NSBP761-008	Piston ring 2nd stage VH50N
NSBP762-003	RIDER RING 1ST STAGE VH60N
NSBP762-007	Rider ring 2nd stg VH60N
NSBP762-008	RIDER RING 2ND STAGE
NSBP859-004	Air filter element	VARIOUS	10
NSBP966-001	Oil Pressure gauge
PR1962845	X1 Filter element
PR1962865	XA Filter element
PR1962885	AC Filter Element	steel
PSB001-001	Conn rod bolt V
PSB001-002	Piston rod securing pin
PSB001-003	CONN ROD BOLT
PSB002-002	CONN ROD NUT
PSB002-003	clamping nut	steel	2
PSB002-004	Piston rod nut 1 3/8"BSF	steel	0.35
PSB002-005	Crosshead nut
PSB002-007
PSB002-008	Locknut
PSB002-009	Crosshead nut 1 5/8" BSF	steel	0.6
PSB002-010	Piston Nut 1 5/8" BSF
PSB002-011	Piston rod nut	steel
PSB002-012	Piston rod nut
PSB003-001	Washer bottom reinforcing
PSB003-002	Washer bottom reinforcing
PSB003-003	Washer top reinforcing
PSB003-004	clamping nut
PSB003-005	roller beraing distance washer inner
PSB003-006	Distance piece SUCTION VALVE
PSB003-008	Washer top reinforcing	STEEL	0.4
PSB003-009	Washer bottom reinforcing	STEEL	0.5
PSB003-010	Distance piece
PSB003-011	WASHER - TOP REINFORCING
PSB003-012	WASHER - BOTTOM REINFORCING
PSB003-066
PSB004-001	Piston lock plate	steel
PSB004-002	Locking washer
PSB004-003	Locking washer	steel	0.2
PSB004-004	Locking washer
PSB004-005	Locking washer
PSB004-006	CIRCLIP - PISTON ROD VH16N
PSB004-007	Piston rod locking washer
PSB004-008	CROSSHEAD CIRCLIP
PSB004-009	Crankshaft lock washer
PSB004-011	TAB WASHER CRANKSHAFT
PSB005-002	OIL PUMP DRIVING PIN
PSB005-003	seat to stud peg
PSB005-004	crosshead pin
PSB005-005	CROSSHEAD PIN (W) 2ND STAGE ONLY
PSB006-001	O-ring
PSB006-002	O-ring
PSB006-003
PSB006-004
PSB006-005
PSB006-008	O-ring 3rd stage top cover WH29H3N	Nitrile rubber	0.03
PSB006-008-VITON	O-ring 3rd stage top cover WH29H3N
PSB006-013	O-ring Valve cage STG 2 VH9 + VH15 (VITON)	rubber product
PSB006-014	O-ring
PSB006-016	O-ring valve cage
PSB006-018	O-ring Valve cage STG 1 VH9 + VH15 (VITON)	Viton rubber
PSB006-019	BELLISS O RING VH15H3N	rubber product
PSB006-020	3rd stg cylinder o-ring VH15H3N	rubber product
PSB006-021	o-ring	rubber product
PSB006-022	O-ring	Viton rubber
PSB006-024	O-ring
PSB006-025	Valve cover oring
PSB007-003	Oil seal Crankshaft
PSB007-004	OIL SEAL
PSB007-005	Oil seal Crankshaft
PSB007-006	BELLISS OIL SEAL - CRANKSHAFT	tbc
PSB007-012	Oil seal Crankshaft
PSB008-001	Joint 1st stg top cover NOVUS	C4324 1.0MM
PSB008-001-GRAPHOIL	Joint 1st stg top cover GRAPHOIL	Graphoil PSM 1.0
PSB008-002	Joint 1ST STAGE INLET / OUTLET	C4324 1.0MM
PSB008-002-GRAPHOIL	1ST STAGE INLET / OUTLET	Graphoil PSM 1.0
PSB008-003	2nd stg top cover joint NOVUS	C4324 1.0MM
PSB008-003-GRAPHOIL	2nd stg top cover joint GRAPHOIL	Graphoil PSM 1.0
PSB008-003-SSTC	2nd stg top cover joint GRAPHOIL	Graphoil PSM 1.0
PSB008-004	Joint 2nd stg air-inlet /outlet	C4324 1.5MM
PSB008-004-GRAPHOIL	Joint 2nd stg air-inlet /outlet	Graphoil PSM1.5
PSB008-005	Joint crankcase door	CORK 1.5MM
PSB008-006	Joint Cross head door	N127 nitrile cork 1.5mm
PSB008-007	BELLISS JOINT - CRANKCASE BEARING END COVER
PSB008-008	Joint	C4324 0.5MM
PSB008-009	Joint oil filter to end cover	C4500 x 0.75mm
PSB008-010	JOINT - LUBRICATOR COVER TO END COVER
PSB008-011	JOINT - OIL PUMP SUCTION FITTING
PSB008-012	JOINT - OIL PUMP END COVER
PSB008-013	Baffle
PSB008-014	BELLISS JOINT - CRANKCASE MAIN GUIDE
PSB008-015	Joint main guide loose plate	C4324 0.4MM
PSB008-016	Joint piston rod scraper	C4324 0.5MM
PSB008-017	JOINT - TUBESTACK WATER SIDE	Neoprene rubber 1.5mm
PSB008-018	JOINT - TUBESTACK AIR SIDE	C4324 1.0
PSB008-019	Joint - Tubestackair side	???
PSB008-020	Joint tube stack air side	C4324 1.0
PSB008-021	BELLISS JOINT - TUBESTACK WATER SIDE	Neoprene rubber 1.5
PSB008-022	Joint 2nd stg inlet pipe	C4324 0.8MM
PSB008-023	oil pump/bearing end cover gasket	C4324 0.5MM
PSB008-025	top cover joint	C4324 1.0MM
PSB008-025/GRAPHOIL	top cover joint	Graphoil PSM 1.0MM
PSB008-026	Joint
PSB008-027	Joint crankcase door	CORK
PSB008-028	Baffle
PSB008-029	Separator cover
PSB008-032	JOINT
PSB008-039	Joint Bearing Housing
PSB008-040
PSB008-044	Joint 3rd stg top cover	C4324 1.5	0.3
PSB008-044-GRAPHOIL	Joint 3rd stg top cover	Graphoil PSM 1.5mm
PSB008-048	Gasket level switch	C4324 0.4MM
PSB008-049	Joint	C4324 1MM
PSB008-050	JOINT - LP TOP COVER VH16N MARK I	PSM 1.0MM
PSB008-051	Joint
PSB008-053	HP top cover gasket	Graphoil PSM 1.0
PSB008-054	Joint
PSB008-055	Joint Crankcase door	C4324 1MM
PSB008-056	Joint Crankcase guide	C4324 0.50MM
PSB008-057	Joint - Scraper	C4324 0.5MM
PSB008-058	Joint -
PSB008-059	Joint -
PSB008-062	Inlet gasket 2nd stage
PSB008-076	BELLISS JOINT - OIL PUMP VHA8N
PSB008-085	BELLISS JOINT
PSB008-087	JOINT - HP CYLINDER AIR INLET/OUTLET
PSB008-088	Joint	C4324 0.8MM
PSB008-089	Joint
PSB008-090	Joint lp top cover VH16N
PSB008-091	Joint lp top cover VH16N	C4430	0.02
PSB008-103	Joint Air Inlet / Outlet
PSB008-108	1st stg top cover joint	C4324 @ 1.00
PSB008-108-GRAPHOIL	1st stg top cover joint	Graphoil PSM 1.0
PSB008-109	Inlet Delivery gasket
PSB008-115
PSB008-117
PSB008-118
PSB008-119	Crankcase bearing house gasket
PSB008-120	BELLISS JOINT - PUMP
PSB008-121	Joint Crankcase door	Nitrile cork 3.0mm	0.02
PSB008-122	Joint main guide	N127 Nitrile cork 3mm	0.02
PSB008-127	gasket distance piece / cylinder
PSB008-129	Gasket 2nd to 3rd stage
PSB008-135	2nd stg top cover gasket HI TEMP MAT	Graphoil PSM 1.0
PSB008-137	gasket relief valve
PSB009-002	MAIN GUIDE DOOR
PSB009-006	2MM THICK APERTURE COVER
PSB009-007	DOOR - CRANKCASE
PSB012-001	SWITCH TEMP
PSB012-011	Amot switch
PSB012-012	BLOWDOWN VALVE 1st / 2nd STAGE
PSB012-015	Temperature switch 1/2" BSP SET
PSB012-026
PSB012-027	Oil pressure gauge
PSB012-028
PSB012-031
PSB012-063	Blow down valve type 30
PSB012-064	Blow down valve silencer	steel	0.1
PSB013-001	Relief valve
PSB013-002	NRV LUBRICATOR
PSB013-004	NRV valve poppet PTFE Nose
PSB013-005	PER VALVE BODY
PSB013-006	NRV (POPPET) VALVE SEAT
PSB013-007	NRV (POPPET) SPRING
PSB013-008	NRV (POPPET) VITON O RING
PSB013-013	OIL RELIEF VALVE
PSB013-024	NRV 4" POPPET VALVE
PSB013-025	NRV 8" POPPET VALVE
PSB013-033	Relief valve
PSB013-043	GASKET
PSB013-052	Relief valve
PSB013-057	Relief valve set pressuure 4.5 BARG 1" BSPT
PSB013-059	Relief valve set pressure 17 BARG 3/4" BSPT
psb013-072	Relief valve
PSB013-073	Relief valve VH21H3N 1st stage
PSB013-074	1" inlet male set @ 16.5bar g (246psi)
PSB014-001	Main bearing roller	various steels	5
PSB014-002	Conn rod big end bearing per pair V machine
PSB014-003	Conn rod bush small. Sold with a bore @ 2.478", needs finished to 2.500"
PSB014-004	Conn rod big end bearing per pair W machine
PSB014-005	CONN ROD BUSH LARGE	alloy ( bronze)	1.2
PSB014-006	Roller bearing
PSB014-007	Main bearing
PSB014-008	Connecting rod top end bush
PSB014-011	Main Bearing
PSB014-012	Conn rod big end bearing (pair)	various
PSB014-022	Main bearing VH3-6-8)
PSB015-003	CLAMPING RING
PSB016-002	Crankshaft thrust washer
PSB016-003	Crankshaft thrust washer
PSB017-003	Oil pump
PSB017-005	Oil pump
PSB017-007	Oil pump
PSB017-011	Oil pump W only Long style	steel
PSB021-001	Piston ring Price on qty
PSB021-002	Piston ring Price on qty
PSB021-004	Piston ring Price on qty
PSB021-005	Piston ring Price on qty
PSB022-001	1st stg piston ring	HY22 EQUAL
PSB022-002	Piston ring	HY22 EQUAL
PSB022-003	2nd stg piston ring	HY22 EQUAL
PSB022-003/7	2nd stg ring set CFT	HY22 EQUAL
PSB022-004	Piston ring	HY22 EQUAL
PSB022-005	1st stg rider ring	HY22 EQUAL
PSB022-006	rider ring	HY22 EQUAL
PSB022-007	2nd stg rider ring	HY22 EQUAL
PSB022-008	rider ring	HY22 EQUAL
PSB022-009	PISTON RING	HY22 EQUAL
PSB022-010	guide ring	HY22 EQUAL
PSB022-011	1st stg piston ring	HY22 EQUAL
PSB022-012	1st stg rider ring	HY22 EQUAL
PSB022-013	2nd stg piston ring	HY22 EQUAL
PSB022-014	2nd stg rider ring	HY22 EQUAL
PSB022-015	1st stg piston ring	HY22 EQUAL
PSB022-016	1st stg rider ring	HY22 EQUAL
PSB022-017	2nd stg piston ring	HY22 EQUAL
PSB022-018	3rd stg rider ring	HY22 EQUAL
PSB022-019	Piston ring	HY22 EQUAL
PSB022-020	Rider ring	HY22 EQUAL
PSB022-025	1st stg piston ring	HY22 EQUAL
PSB022-026	1st stg rider ring	HY22 EQUAL
PSB022-027	Piston ring	HY22 EQUAL
PSB022-028	rider ring	HY22 EQUAL
PSB022-029	Piston ring WH56N	HY22 EQUAL
PSB022-030	Rider ring WH56N	HY22 EQUAL
PSB022-036		HY22 EQUAL
PSB022-042	PISTON RING 1ST STAGE VH35N	HY22 EQUAL
PSB022-043	RIDER RING 1ST STAGE VH35N	HY22 EQUAL
PSB022-044	PISTON RING 2nd STAGE VH35N	HY22 EQUAL
PSB022-045	RIDER RING 2nd STAGE VH35N	HY22 EQUAL
PSB022-054	3rd stg piston rings	BMT	0.15
PSB022-054/055	3rd stage ring set BMT	HY22 EQUAL
PSB022-055	3rd stg rider rings	BMT	0.8
PSB024-001	Crankcase Breather
PSB025-001	Oil suction strainer V 1/2"BSP	various
PSB025-002	OIL FILTER ASSY (Short style)
PSB025-003	Oil Filter (Short) for assembly PSB025-002	various
PSB025-005	Oil suction strainer W 3/4" BSP	various	0.18
PSB025-006	Oil filter o-ring	rubber NBR product	0.008
PSB025-008	oil suction strainer washer
PSB025-009	Oil filter assy UNIT long style
PSB025-010	Oil filter long for assy PSB025-009	various	0.2
PSB026-099	OIL HOSE ASSEMBLY
PSB026-149	Flexible pipe
PSB026-328

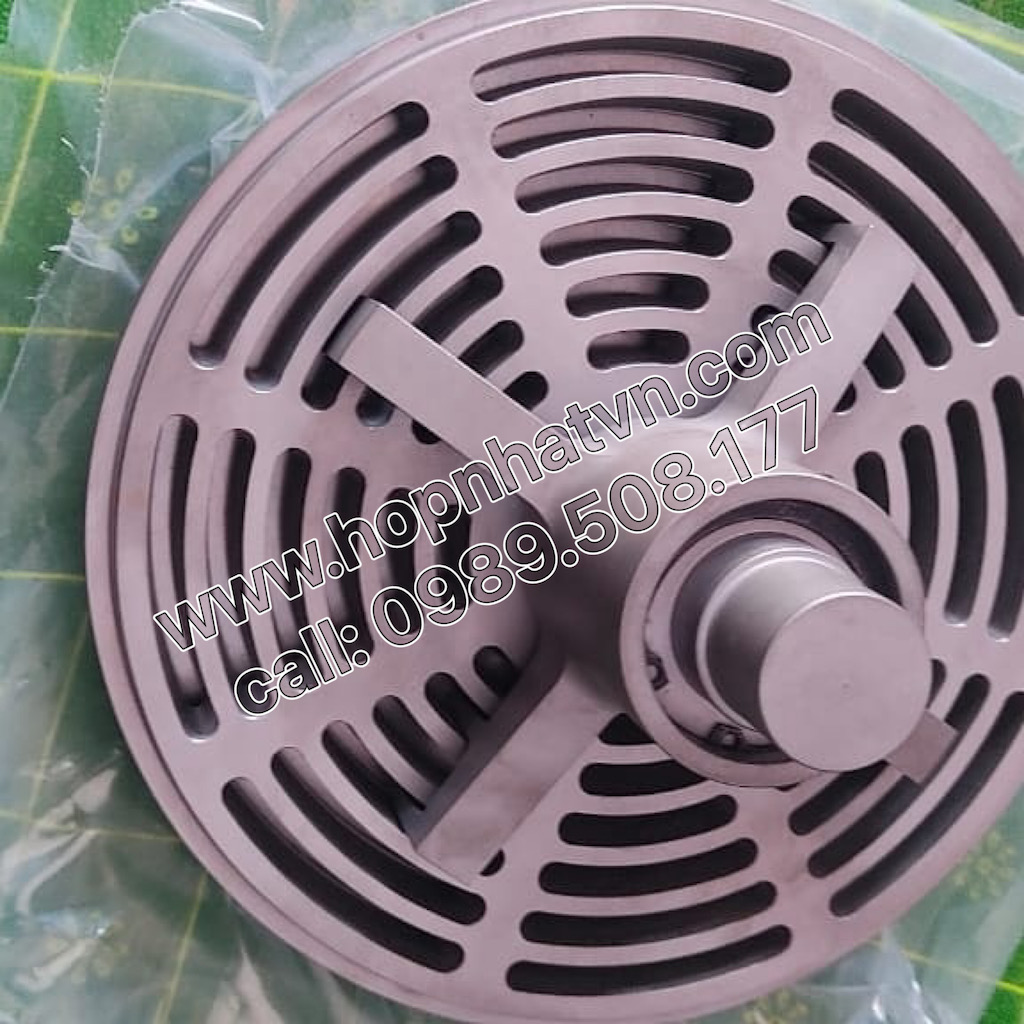

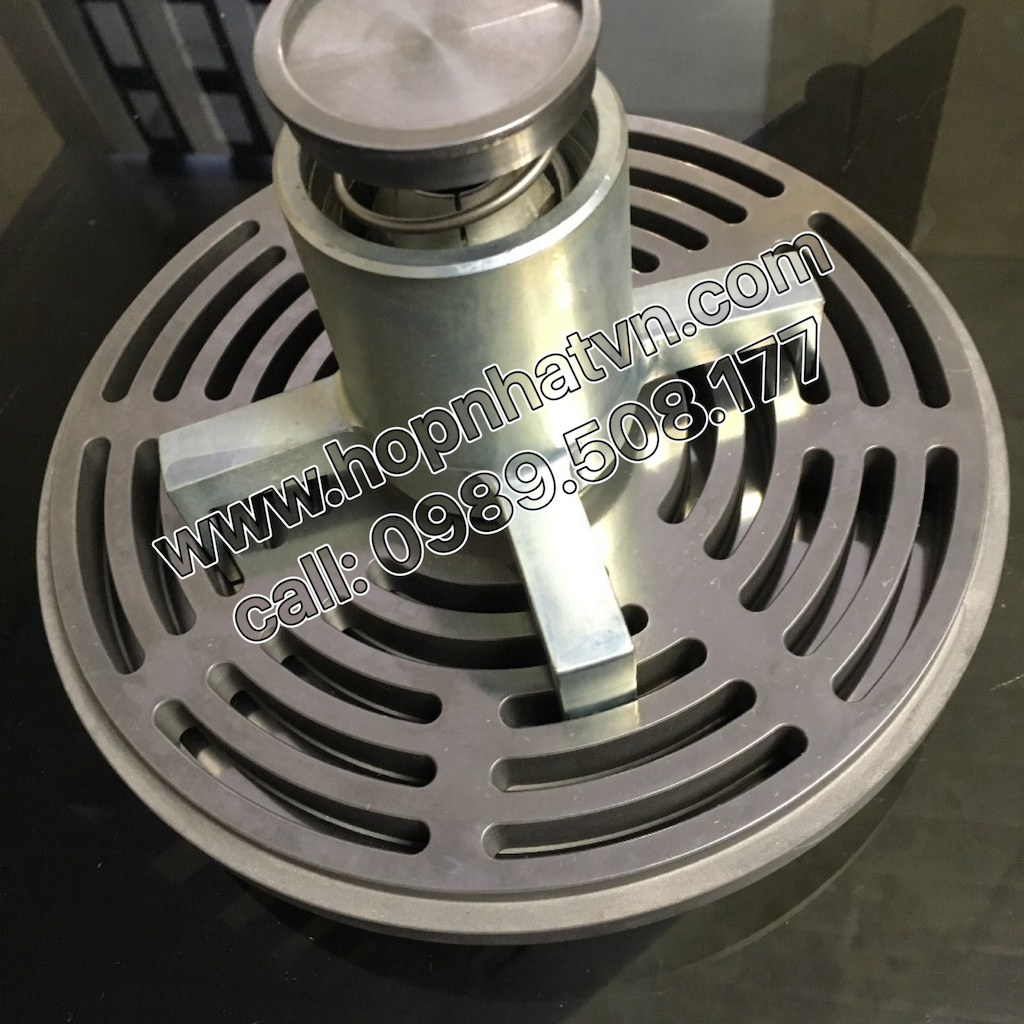

PSB027-001	134r Suction assy & unloader all SS	carbon steel	3
PSB027-001-RK	134r Suction Valve repair kit
PSB027-001-RK-1	134r Suction Valve repair kit
PSB027-001-UN	134r Suction assy no unloader	carbon steel	3
PSB027-002	134r Suction assy & unloader	Stainless Steel	3
PSB027-002-RK	134r Suction Valve repair kit
PSB027-005-RK	88R suction

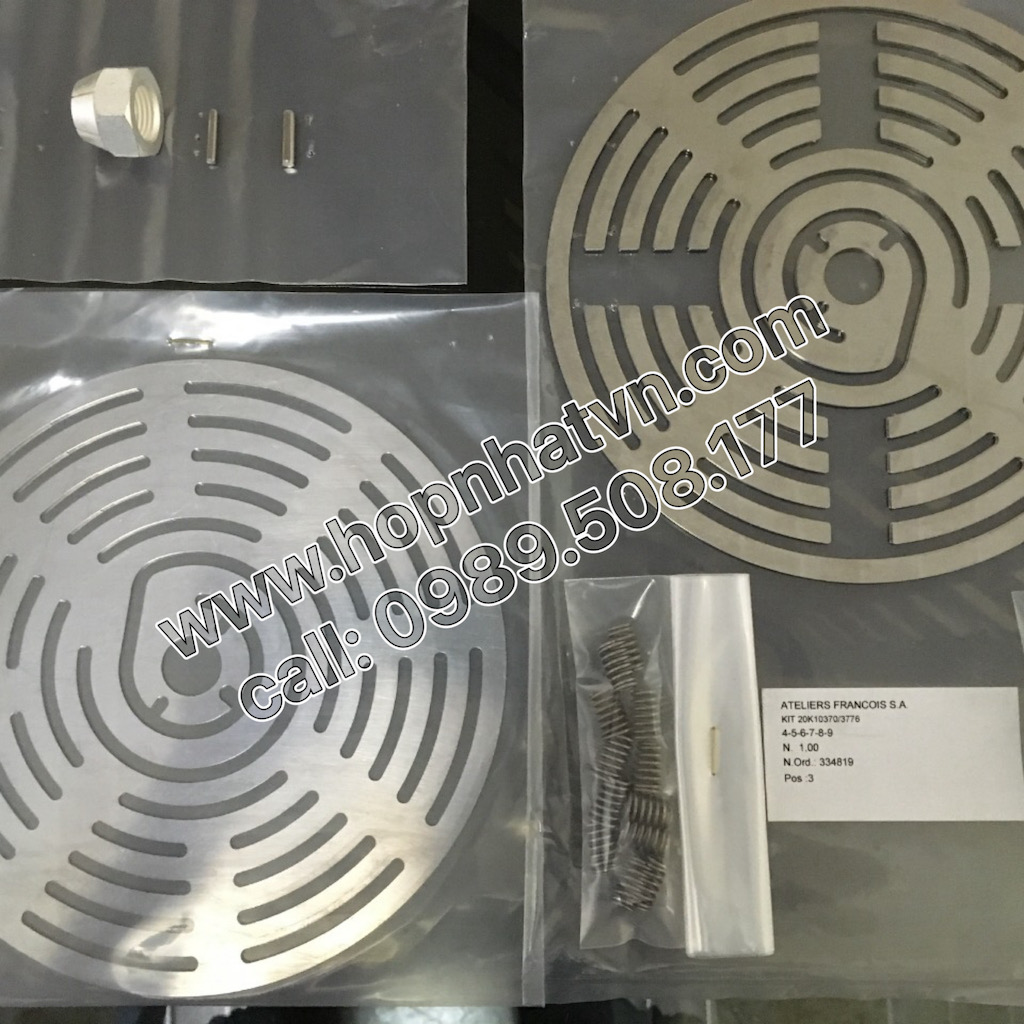

PSB027-006	92fdr valve plate	stainless steel	0.08
PSB027-007	92fdr Damper plate
PSB027-008	92fdr lift washer 0.6mm
PSB027-009	92fdr lift washer 0.4mm
PSB027-010	Coil spring 61-1210
PSB027-011	Coil spring 61-I-4
PSB027-012	16MM SLF Nut 60-09-H410
PSB027-013	Old style 92FDR UNLOADER. No qt
PSB027-014	134R Valve plates (QAP13-70-8767A)	stainless steel	0.08
PSB027-015	134R Damper plate (QAP13-70-8767B)
PSB027-016	134R Lift washer 0.9mm
PSB027-017	134R Lift washer 0.6mm
PSB027-018	Coil spring 61-I-2
PSB027-019	For unloader use PSB027-022
PSB027-020	134R Suction seat
PSB027-020SS	134r suction seat stainless steel
PSB027-020SS-ASSY	134r suction seat & pins stainless steel
PSB027-021	134R Suction guard
PSB027-021SS	134R Suction guard Stainless
PSB027-022	134r unloader
PSB027-023	134R Suction bolt
PSB027-024	E-clip (134R PSB027-001)
PSB027-025	134r unloader spring
PSB027-037	105R Lift washer 0.8mm
PSB027-038	12MM X 1.75 Nut
PSB027-041	E-CLIP 88R & 105R
PSB027-043	pin
PSB027-044	pin
PSB027-045	194R Suction & unloader
PSB027-045-RK	194r suction repair kit
PSB027-047	Pin 3.8 x 16
PSB027-048	Pin 2.3 x 14
PSB027-057	pin
PSB027-058	pin
PSB027-061	105R Valve plate	stainless steel
PSB027-062	105r spring plate 0.6 thick
PSB027-063	105R Damper plate
PSB027-064	105r spring plate 0.6 thick
PSB027-071	194r suction bolt
PSB027-073	194R Valve plate
PSB027-074	194R Damper plate 50-039793, qap13-70-8754D
PSB027-075	194R lift washer 0.9mm
PSB027-078	Pin
PSB027-079	Pin
PSB027-080	194R Unloader for PSB027-045
PSB027-081
PSB027-081	194R Unloader spring for PSB027-045
PSB027-098	79ED Damper plate
PSB027-099
PSB027-101	79ED Lift washer 0.6mm
PSB027-102	79ed Valve plate	stainless steel
PSB027-103	79ED Suction seat
PSB027-104	79ED guide bush
PSB027-105	79ED guide bush
PSB027-108	Unloader spring
PSB027-110	79ED CIRCLIP SAS916-009
PSB027-113	92fdr Suction assy & unloader	stainless steel	3.6
PSB027-113-RK	92fdr Valve repair kit
PSB027-113-RK-1	92fdr Valve repair kit
PSB027-114	105R Suction assy & unloader	stainless steel	2
PSB027-114-RK	105r Suction Valve repair kit
PSB027-115	79ed suction assy & unloader
PSB027-119	92fdr unlaoder
PSB027-120
PSB027-120	92fdr unloader spring
PSB027-121	92fdr unloader bush guide
PSB027-122	92fdr unloader stop washer
PSB027-123	92fdr & 110gd unloader bush
PSB027-124	92fdr unloader top cover
PSB027-125	Circlip (92fdr PSB027-113)
PSB027-126-RK	134r suction Valve repair kit
PSB027-134	105R clip
PSB027-135	105R SUCTION BOLT
PSB027-149	79ed suction assy & unloader	stainless steel	3
PSB027-149-RK	79ed Suction Valve repair kit
PSB027-150	Coil spring
PSB027-151	Coil spring
PSB027-152	79ED Lift washer 0.4mm
PSB027-156	Coil spring 60-I-5
PSB027-166	214R Valve plates double arm 1.75mm
PSB027-167	194R lift washer 0.8mm 53-48H099
PSB027-168	194R lift washer 1.0mm 51-48H099
PSB027-169	214R Damper plate 1.5mm
PSB027-171
PSB027-181	194r Suction & Unloader	stainless steel	9
PSB027-181-RK	194r suction repair kit	Various
PSB027-181-RK-1	194r suction repair kit	Various
PSB028-001	Actuator assy	various	0.85
PSB028-002	Actuator seal ring for nut
PSB028-003	Diaphragm Actuator	Neoprene & nylon
PSB028-004	Actuator spindle seal
PSB028-005	Actuator spindle
PSB028-006	Actautor spring
PSB028-007	Actuator
PSB028-008	ACTUATOR ASSY
PSB028-011
PSB028-012	Actuator seal
PSB028-017	Actuator
PSB028-019	Actuator
PSB028-033	USE PSB028-004
PSB028-037	ACTUATOR ASSY
PSB028-038	Actuator
PSB028-038-RK	Repair kit
PSB028-041	Actuator
PSB028-045	Actuator
PSB029-001	Obsolete use PSB029-064
PSB029-002	Obsolete use PSB029-065
PSB029-006	Coil spring 60-1211
PSB029-007	Coil spring 61-I-5
PSB029-008	134R delivery seat
PSB029-014	105R lift washer 0.6mm
PSB029-015	105R Delivery BM Range
PSB029-015-RK	105R Delivery BM RANGE
PSB029-016	2.8 x 14mm Pin
PSB029-017	2.3 x 14mm Pin
PSB029-021	194R Delivery valve
PSB029-021-RK	194R Delivery repair kit
PSB029-027	105R Delivery seat stainless steel
PSB029-030	105R spring plate 0.9
PSB029-033	194r 20mm delivery stud 52-66h233
PSB029-035	Coil spring
PSB029-036	194R lift washer 0.6mm
PSB029-049
PSB029-058	92fdr Delivery assy	stainless steel	2.5
PSB029-058-RK	92fdr Delivery Valve repair kit
PSB029-058-RK-1	92fdr Delivery Valve repair kit
PSB029-059	79ed Delivery assy	stainless steel	2.5
PSB029-059-RK	79ed Delivery Valve repair kit
PSB029-059-RK-1	79ed Delivery Valve repair kit
PSB029-064	134r Delivery assy	carbon steel	2
PSB029-064-RK	Valve repair kit
PSB029-065	134R Delivery assy SS	various	2.5
PSB029-065-RK	134r Delivery Valve repair kit
PSB029-066	134r Delivery assy	carbon steel	2.5
PSB029-066-RK	134r Delivery Valve repair kit
PSB029-066-RK-1	134r Delivery Valve repair kit
PSB029-067	134R delivery seat & stud assy
PSB029-068	134R Delivery guard
PSB029-069	134r delivery stud
PSB029-070	134r delivery seat stainless steel
PSB029-070-ASSY	134r delivery seat & stud assy
PSB029-071	134R delivery guard Stainless Steel
PSB029-079
PSB029-083	134r Delivery assy 1.2 lift	carbon steel	2.5
PSB029-083-RK	134r Delivery Valve repair kit
PSB029-084	88R Delivery valve
PSB029-085	134r Delivery assy SS	stainless steel	2.5
PSB029-085-RK	134r Delivery Valve repair kit
PSB029-091
PSB029-100	Coil spring 61-II-5
PSB029-101	134r Delivery assy	carbon steel	2.5
PSB029-101-RK	134r Delivery Valve repair kit
PSB029-102	134r Delivery assy Stainless steel
PSB029-104	134r Delivery assy	stainless steel	2.5
PSB029-104-DS	134r delivery seat
PSB029-104-DS-ASSY	134r delivery seat & stud assy
PSB029-104-RK	134r Delivery Valve repair kit
PSB029-110	194r Delivery assy	stainless steel	8
PSB029-110-RK	194R Delivery repair kit
PSB029-110-RK-1	194R Delivery repair kit
PSB030-002	USE 2-70-129-02
PSB032-001	OIL SCRAPER BOX COMPLETE
PSB032-002	Oil shredder
PSB032-003	PACKING BOX SUPPORT PLATE
PSB032-004	piston rod scrapper wearing parts	PTFE	0.12
PSB032-004-1	oil scraper wide groove, bronze with ptfe
PSB032-004-WM	piston rod scrapper wearing parts WHITE METAL		0.12
PSB032-005	PACKING BOX AIRSIDE COMPLETE
PSB032-006	PACKING BOX SPACER
PSB032-006	PACKING BOX SPACER
PSB032-007	Piston rod packing pair ( 4 PAIR =set)	PTFE	0.06
PSB032-010	Stuffing box
PSB032-011	piston rod slinger
PSB032-012	Scraper wearing set
PSB032-013	PACKING BOX
PSB032-014	Packing wearing set
PSB032-023	Packing case
PSB032-024	Packing wearing parts set (6 per set)
PSB032-033	Rod packing
PSB032-034	Rod packing
PSB032-042	Wearing parts set
PSB032-042	WEARING PARTS SET 3RD STAGE WH100H3N
PSB032-048	PACKING BOX 3RD STAGE COMPLETE WH28/WH29H3N
PSB032-049	Wearing parts set 3rd stage WH28/WH29H3N	various
PSB032-051	O-RING KIT
PSB032-051	o-ring kit
PSB032-060	Pressure packing assy
PSB032-061	3rd stg piston rod wearing parts
PSB032-062	PACKING BOX RINGS
PSB032-504	Oil Scraper BABBIT BRONZE
PSB033-001	126 Tube stack
PSB033-002	O-ring tube stack
PSB033-003	Brass ring
PSB033-004	72 tubestack	Various steels	45
PSB033-005	O-ring
PSB033-018	COOLER - 55 TUBESTACK New design	Various steels	52
PSB033-019	COOLER - 31 TUBESTACK new design
PSB034-001	Use 2-30-134-01
PSB034-003	Use 2-30-144-01
PSB035-002	USE 2-31-067-01-ASSY
PSB036-005	Drain trap 3/4" BSP
PSB039-003	FLYWHEEL KEY VH16N MKII
PSB044-001	Valve disc spring
QAP13-109-52	79ED nrv complete with housing
QAP13-124-5	tab washer
QAP13-124-6	tab washer
QAP13-64-C32616A	WEARING PARTS SET 1ST STAGE U60W0147ST	various
QAP13-64-C32616B	WEARING PARTS SET 2ND STAGE
QAP13-70-8517A	PIN 2.5X18
QAP13-70-8517B	PIN PSB027-058
QAP13-70-8767A	VALVE PLATE
QAP13-70-8767B	Damper plate
QAP13-70-8767C	110GD valve plate 50-471144 + 2-70-717-01
QAP13-70-8767D	110gd Damper plate 2-70-717-03 & QAP13-70-8767D
RC2-70-211-01	134r Suction assy & unloader
RC2-70-212-01	105R Delivery
RC2-70-517-01	110gd Suction assy & unloader
RC2-70-518-01	110gd Delivery assy
RC2-70-553-01	134r Suction assy & unloader
RC2-70-649-02	110gd Suction assy & unloader
RC2-70-650-02	110gd Delivery assy
RC2-70-755-01	194R Suction assy
RC2-70-755-01	194R Suction valve
RC2-70-756-01	194R Delivery assy
RC2-70-756-01	194R Delivery valve
RCPSB027-001	134r Suction assy & unloader
RCPSB027-002	134r Suction assy & unloader
RCPSB027-045	194Rr Suction & unloader
RCPSB027-113	92fdr Suction assy & unloader
RCPSB027-114	105R suction & unloader
RCPSB027-126	134r suction no unloader
RCPSB027-149	79ED Suction & unloader
RCPSB027-181	194r suction assy
RCPSB029-021	194r Delivery
RCPSB029-058	92fdr Delivery assy
RCPSB029-059	79ED Delivery
RCPSB029-064	134r Delivery assy
RCPSB029-066	134r Delivery assy
RCPSB029-083	134r Delivery assy
RCPSB029-085	134r Delivery assy
RCPSB029-101	134r Delivery assy VH21H3N 1st stg Carbon
RCPSB029-104	134r Delivery assy VH21H3N 2nd stg Stainless
RCPSB029-110	194r Delivery assy
SAS320-RF	To fully overhaul your packing box
SAS916-002-30	Suction Bolt 92FDR & 110GD
SAS916-097	79ed unloader spring
SAS918-936	79ED Delivery seat
SXPSB033-001	SX AFTER COOLER
SXPSB033-004	SX INTERCOOLER
U60R1893	Oring for above packing set / box
U9130210-09	Rider ring 165.1x9.27/3.37x43.8
Y30236	o-ring
	214R Valve plate single arm 2.5mm
Part Code	Customer Ref.	Material	weight kg
4	194r unloader spring (PSB027-181)

Tìm kiếm

Phụ Tùng Belliss & Morcom All

Belliss& Morcom Parts list

| Sản phẩm cùng danh mục|

Tìm kiếm

SẢN PHẨM

Dịch vụ

TIN TỨC

Thông tin thị trường

Tỷ giá

Giá vàng

Thị trường chứng khoán

Chuyển đổi đơn vị trực tuyến
