⚙️ PVX SERIES – OIL-LUBRICATED ROTARY VANE VACUUM PUMPS
🔷 Product Overview
The PVX Series is a range of oil-lubricated rotary vane vacuum pumps that uses circulating oil to perform three essential functions:
➡️ Sealing the compression chamber
➡️ Lubricating moving components
➡️ Cooling the pump during operation
With deep vacuum capability, stable performance, and economical operating costs, the PVX Series is suitable for a wide range of industrial vacuum systems.
📌 Key Specifications
-
Pumping speed: 16–750 m³/h
-
Ultimate vacuum: 0.1–1 mbar
-
Motor power: 0.55–18.5 kW
-
Frequency: 50 Hz or 60 Hz
-
Noise level: 64–76 dB
-
Oil capacity: 0.4–22 litres
-
Inlet connection: ½ inch to DN100
🔄 Operating Principle
The rotor is mounted eccentrically inside the pump chamber and works together with sliding vanes.
As the rotor rotates:
➡️ The inlet chamber volume increases, creating vacuum and drawing gas into the pump.
➡️ The gas is trapped between the vanes and progressively compressed.
➡️ The compressed gas is discharged through the outlet.
The circulating oil improves chamber sealing, reduces friction, removes heat, and helps maintain stable vacuum performance.
An advanced oil mist separator separates oil from the exhaust gas and returns the recovered oil to the lubrication circuit for reuse.
✅ Key Advantages
-
⚡ High vacuum performance
-
💧 Oil-based sealing, lubrication, and cooling
-
♻️ Efficient oil recovery through an oil mist separator
-
🛡️ Effective corrosion protection
-
🔧 Easy inspection and maintenance
-
🕒 Long service life
-
⚙️ Stable and continuous operation
-
💰 Economical investment and operating costs
🏭 Industrial Applications
📦 Vacuum Packaging
Widely used in vacuum packaging machines for food, meat, seafood, electronic components, and products requiring protection from oxygen and moisture.
🌡️ Vacuum Drying
Removes moisture at lower temperatures, making it suitable for food processing, pharmaceuticals, chemicals, and heat-sensitive materials.
🧰 Vacuum Forming
Provides vacuum for plastic forming processes used in the production of trays, packaging, plastic components, and moulded products.
🧪 Vacuum Distillation
Reduces the boiling temperature of liquids and is suitable for chemical processing, pharmaceuticals, oil refining, and laboratory applications.
🏥 Hospital Vacuum Systems
Can be used as part of a central medical vacuum system when the complete system is designed, treated, and certified in accordance with applicable medical standards.
🩺 Medical Equipment
Suitable for suction equipment, analytical instruments, laboratories, and systems requiring a stable vacuum source.
📊 PVX Series Technical Specifications
| Model |
Pumping Speed at 50 Hz |
Pumping Speed at 60 Hz |
Ultimate Vacuum |
Motor Power |
| PVX16 |
16 m³/h |
19 m³/h |
1 mbar |
0.55 kW |
| PVX25 |
24 m³/h |
28 m³/h |
0.5 mbar |
0.75/0.9 kW |
| PVX40 |
40 m³/h |
48 m³/h |
0.5 mbar |
1.1/1.5 kW |

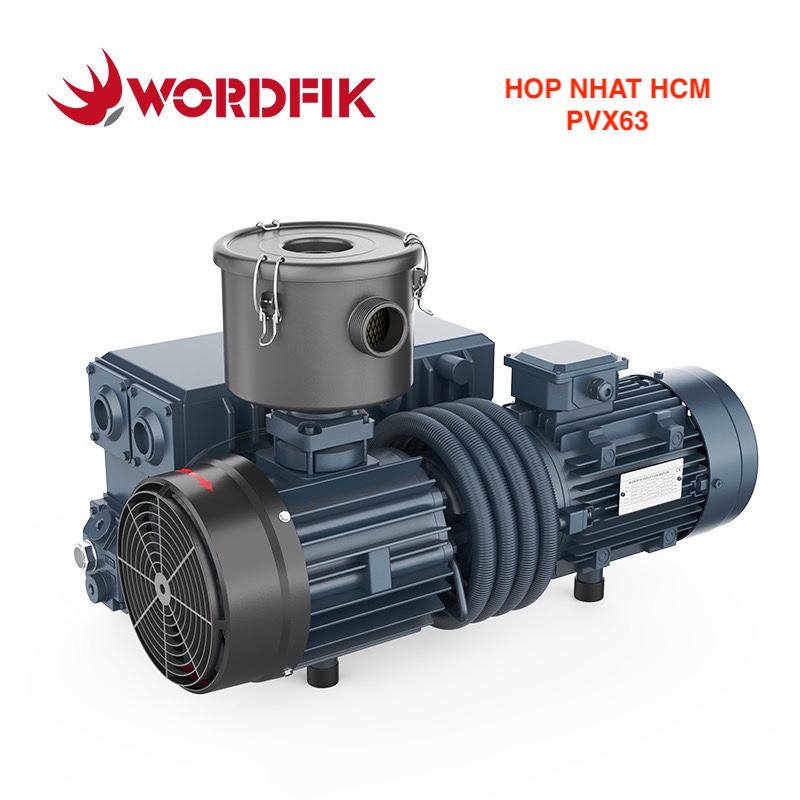

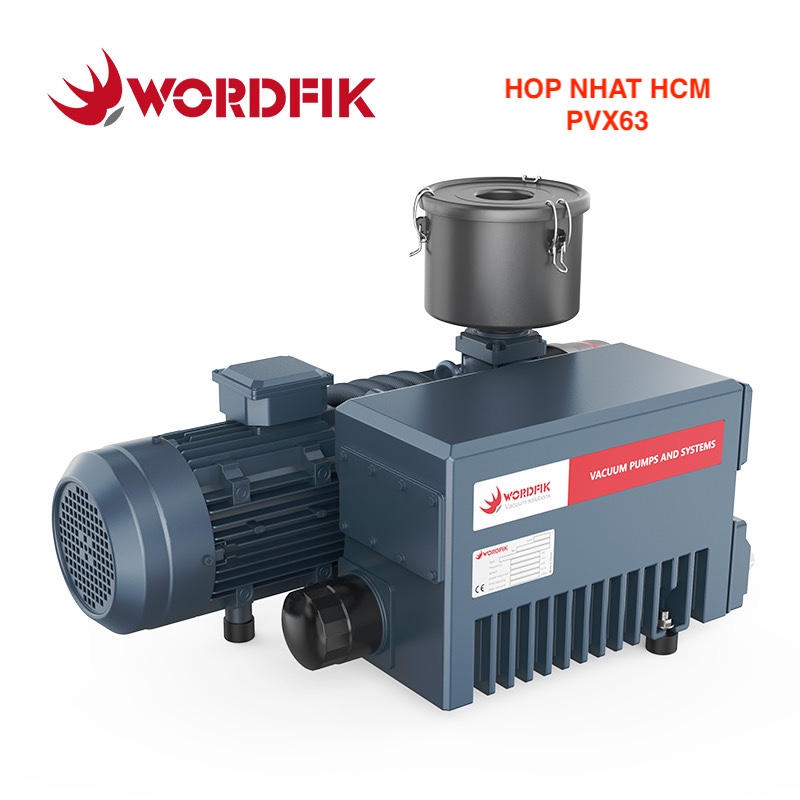

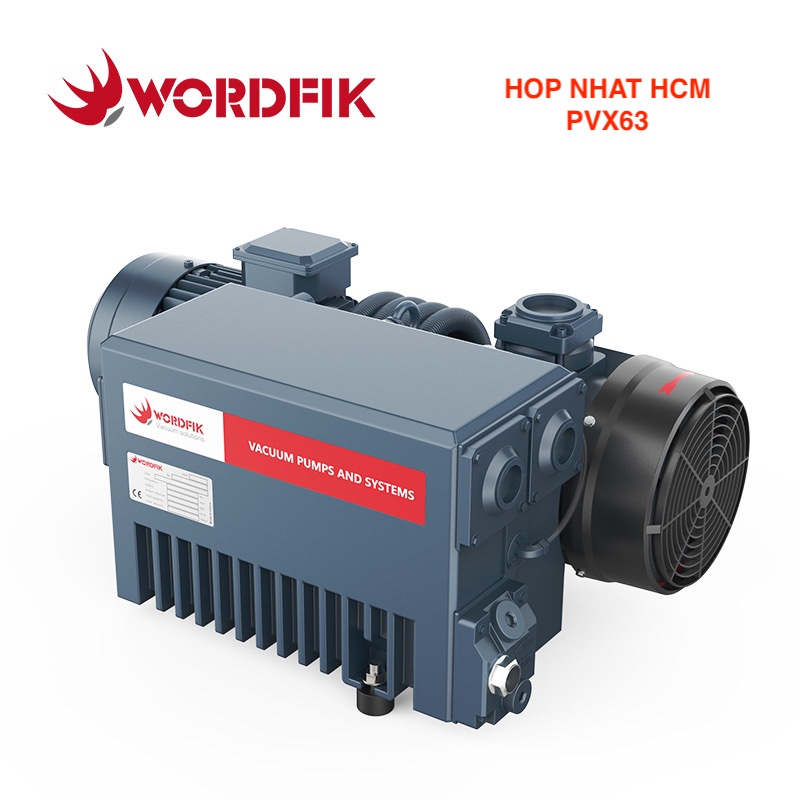

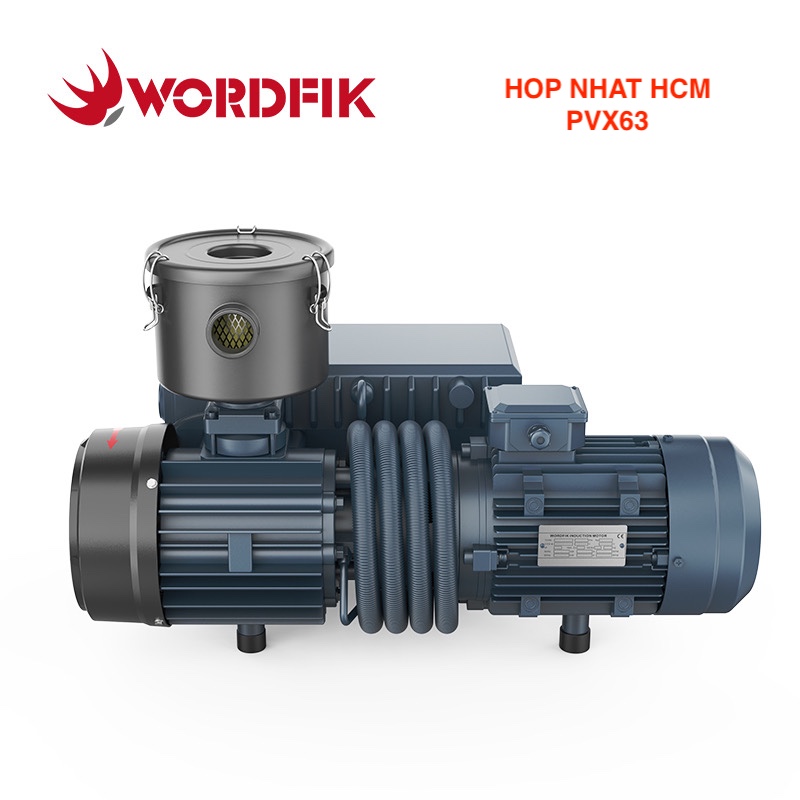

| PVX63 |
63 m³/h |
78 m³/h |
0.5 mbar |
1.5/2.2 kW |

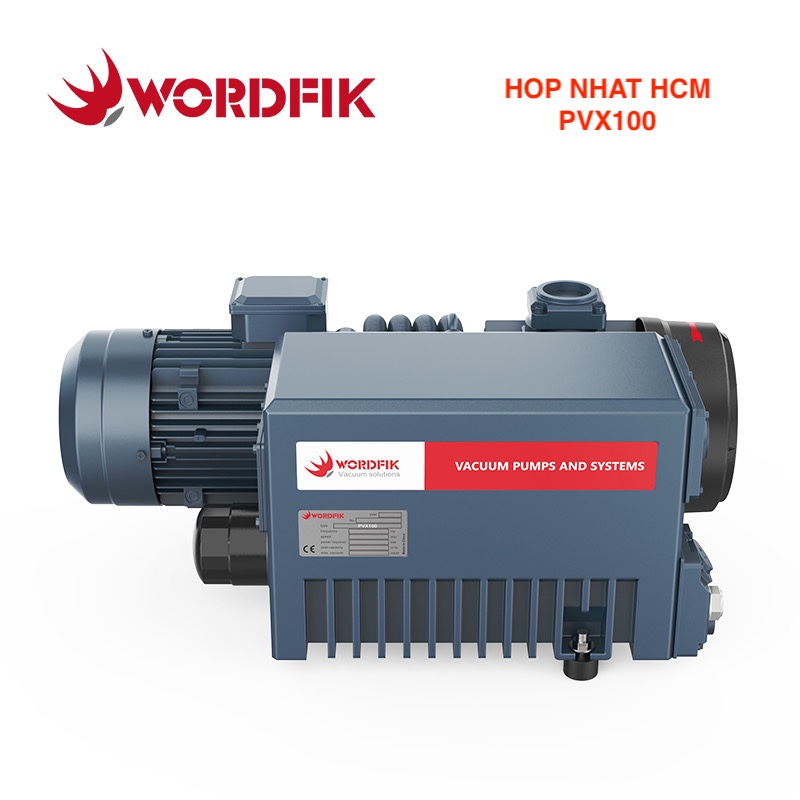

| PVX100 |
100 m³/h |
120 m³/h |
0.5 mbar |
2.2/3 kW |

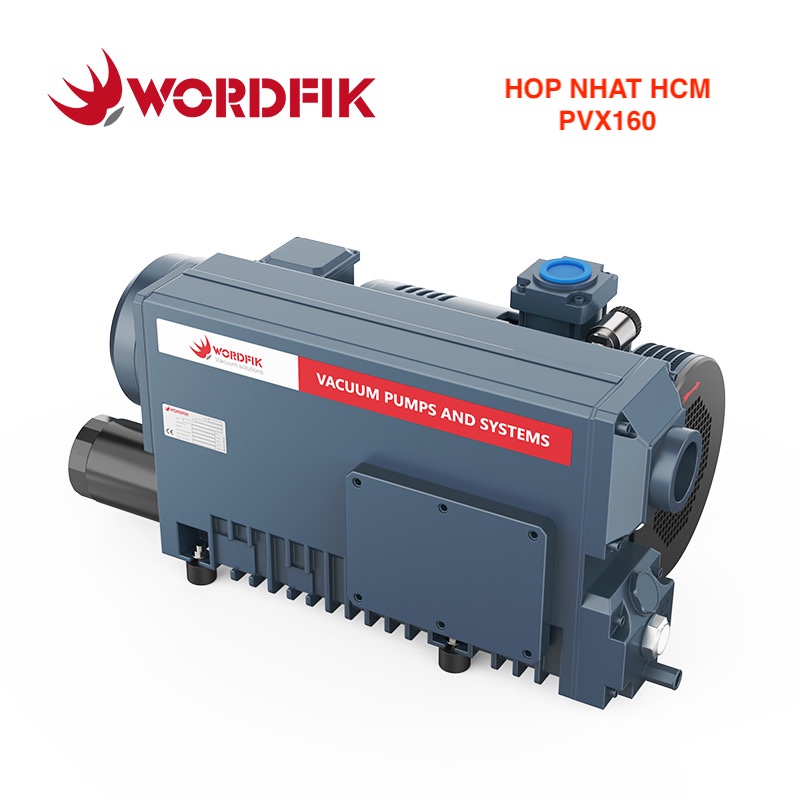

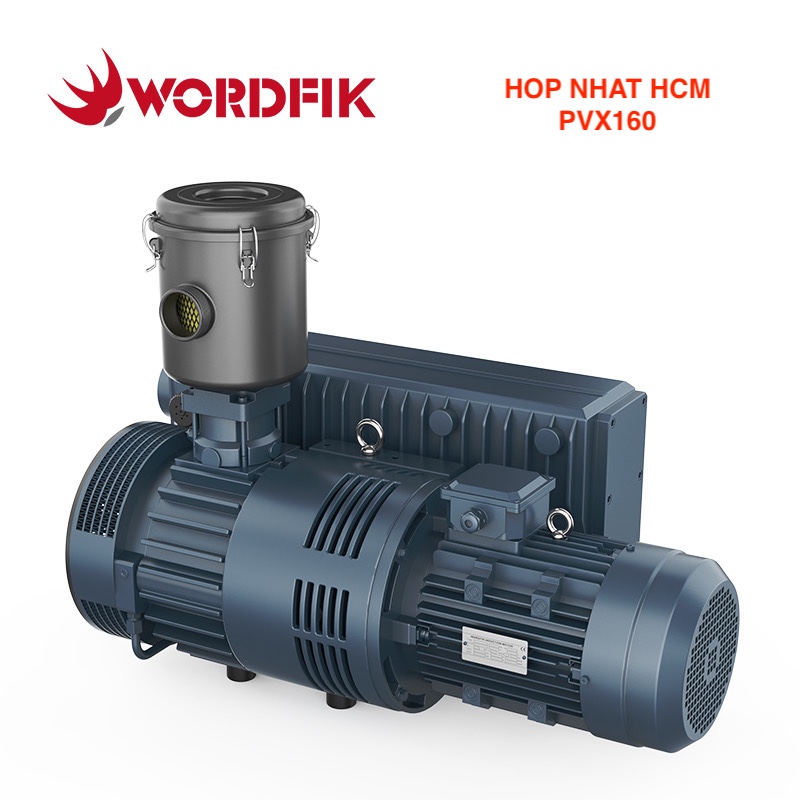

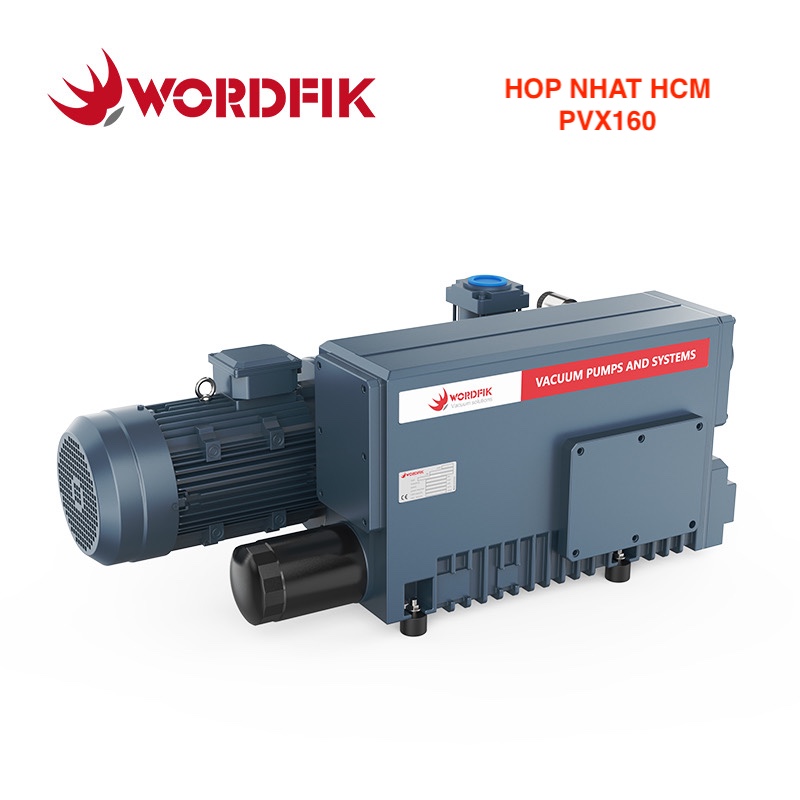

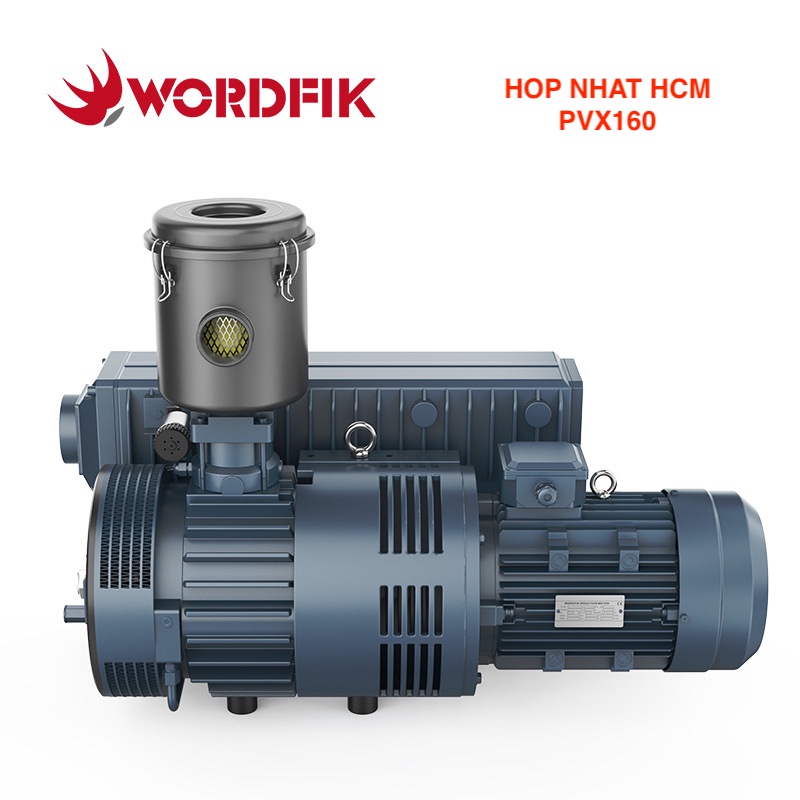

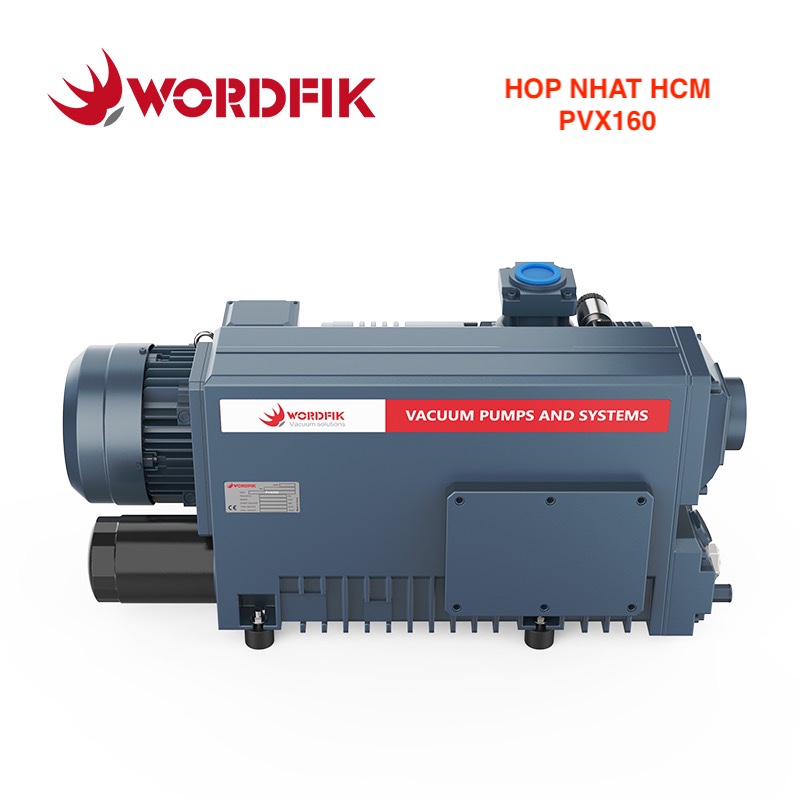

| PVX160 |
160 m³/h |
192 m³/h |
0.5 mbar |
4/5.5 kW |
| PVX202 |
200 m³/h |
240 m³/h |
0.5 mbar |
4–5.5 kW |
| PVX250 |
250 m³/h |
300 m³/h |
0.5 mbar |
5.5–7.5 kW |
| PVX302 |
300 m³/h |
360 m³/h |
0.5 mbar |
7.5 kW |

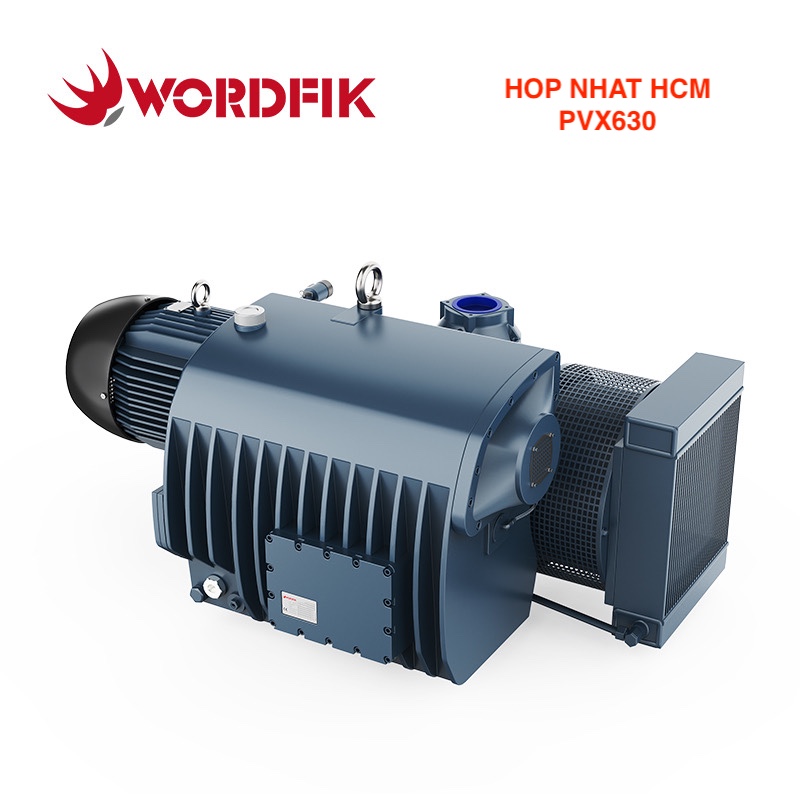

| PVX630 |
640 m³/h |
750 m³/h |
0.1 mbar |
15/18 kW |
| PVX750 |
750 m³/h |
— |
0.1 mbar |
18.5 kW |
🛠️ HOP NHAT HCM – Industrial Vacuum Pump Solutions
Hop Nhat HCM Air Compressor Company supplies PVX Series oil-lubricated rotary vane vacuum pumps together with comprehensive technical services:
✔️ Pump selection based on required pumping speed and vacuum level
✔️ Supply of vacuum pumps and replacement spare parts
✔️ Supply of vacuum pump oil and oil mist separator elements
✔️ Installation, maintenance, and repair services
✔️ Technical support for integration into production lines
📞 Contact Hop Nhat HCM Air Compressor Company for professional consultation and a suitable vacuum solution based on your actual operating requirements.
