| Part number |
Description |
Qty |
| 20J309058 |
Cylindre head gasket |
1 |
| 20J300A8502/0 |
Crosshead visit door gasket |
2 |
| 20G52417108160 |
Crosshead split pin |
1 |
| 20J314036 |
Gasket for scrapper box |
1 |
| 20J314A6000/3 |
Deflector gasket |
1 |
| 20B108A7400/5 |
Scrapper rings |
1 |
| 20B105A37655 |
Packing ring |
3 |
| 20J300A8501/3 |
Packing box bottom gasket |
1 |
| 20S241082 |

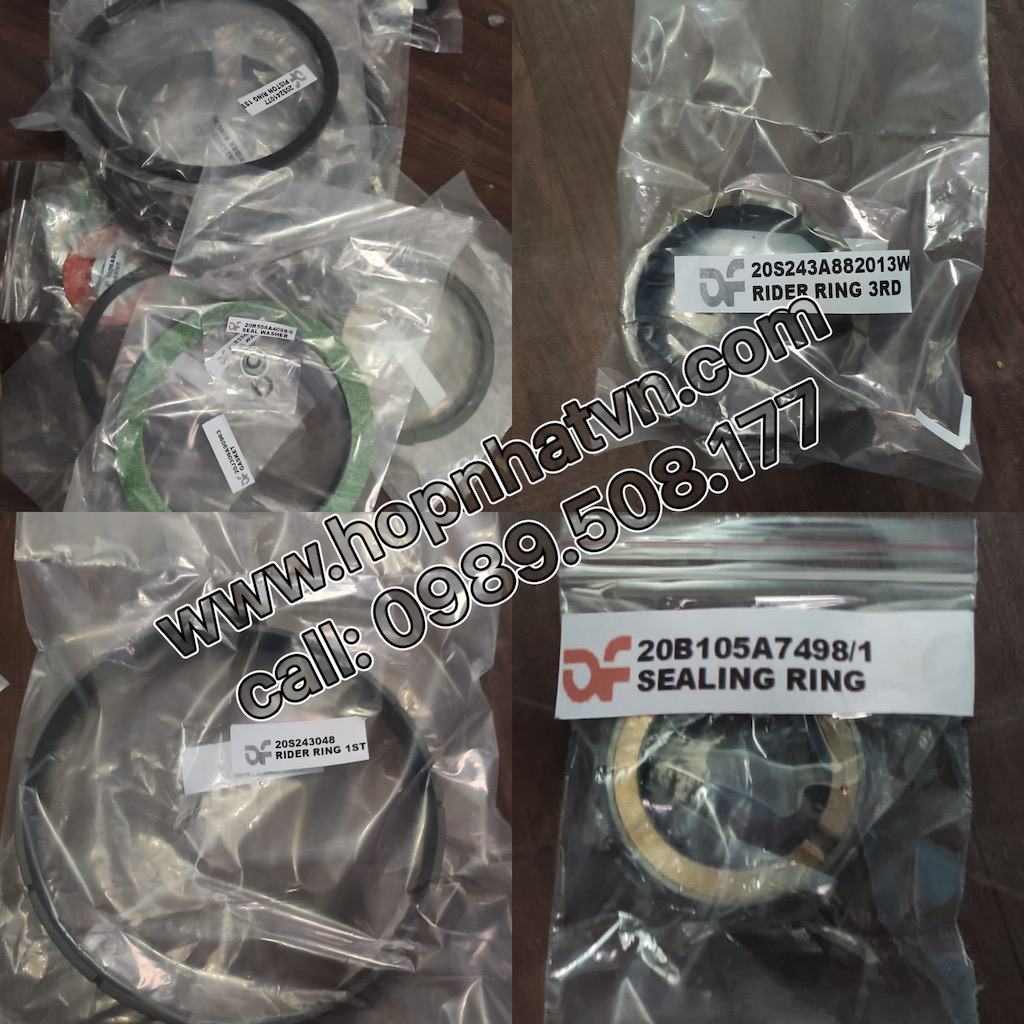

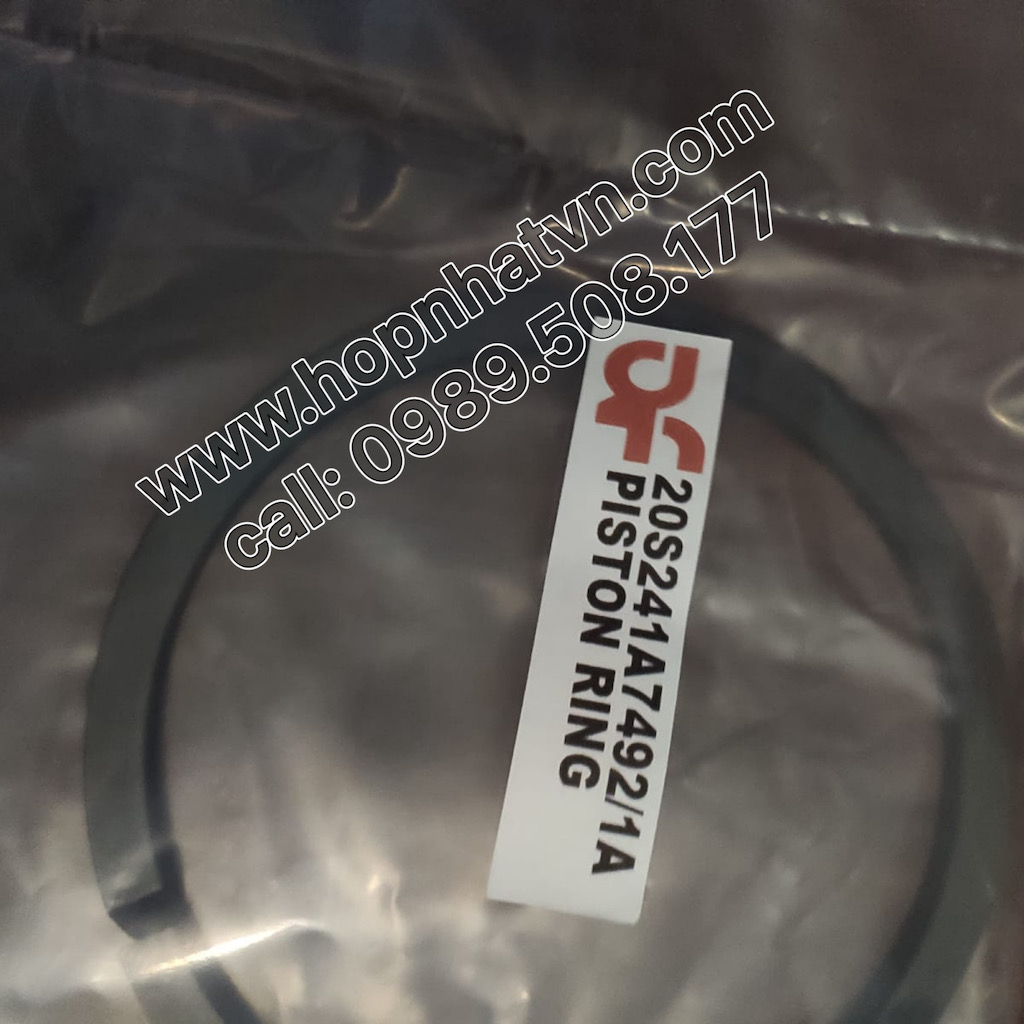

Sealing piston ring |
2 |
| 20S243051 |
Rider piston ring |
1 |
| 20J314A842053 |
O-ring valve cover |
8 |
| 20J312A6046/1 |
Copper ring valve |
8 |
| 20M320MSC34892 |
Unloader mambrane |
4 |
| 20B700BP32884 |
Unloader guiding |
4 |
| 20B105GGV30973 |
Unloader gasket |
4 |
| Parts 2nd(&3rd) stage maint.: |
| Part number |
Description |
Qty |
| 20J30953/590 |
Cylindre head gasket |
1 |
| 20J309A90958 |
Gasket in/out 3rd cylindre |
2 |
| 20J300A8502/0 |
Crosshead visit door gasket |
2 |
| 20G52417108160 |
Crosshead split pin |
1 |
| 20J314036 |
Gasket for scrapper box |
1 |
| 20J314A6000/3 |
Deflector gasket |
1 |
| 20B108A7400/5 |
Scrapper rings |
1 |
| 20B105A37655 |
Packing ring |
4 |
| 20J300A8501/3 |
Packing box bottom gasket |
1 |
| 20S241A8219/1 |
Sealing piston ring 2nd stage |
2 |
| 20S243039R |
Rider piston ring 2nd stage |
2 |
| 20S241065W |
Sealing piston ring 3rd stage |
5 |
| 20S243040WM |
Rider piston ring 3rd stage |
1 |
| 20B105A4524/2VD80 |
Inlet separator 2nd stage |
1 |
| 20J309A90958 |
Outlet separator 2nd stage |
1 |
| 20j314032 |
O-ring valve cover 2nd stage |
2 |
| 20j312a842056 |
Copper ring valve 2nd stage |
2 |
| 20j314023 |
O-ring valve cover 3rd stage |
2 |
| 20j312a6027 |
Copper ring valve 3rd stage |
2 |
| 20m320msc34892 |
Unloader mambrane 2nd stage |
1 |
| 20b700bp32884 |
Unloader guiding 2nd stage |
1 |
| 20b105ggv30973 |
Unloader gasket 2nd satge |
1 |
| 20m320msc34892 |
Unloader mambrane 3rd stage |
1 |
| 20b700bp32884 |
Unloader guiding 3rd stage |
1 |
| 20b105ggv30973 |
Unloader gasket 3rd satge |
1 |
| Oil change: |
| Part number |
Description |
Qty |
| 20j300a8501/4 |
Crankcase visit door gasket |
1 |
| 73j300a98015 |
Oil filter gasket |
1 |
| 20r556a123/2 |
Sealing ring for oil filter plug |
1 |

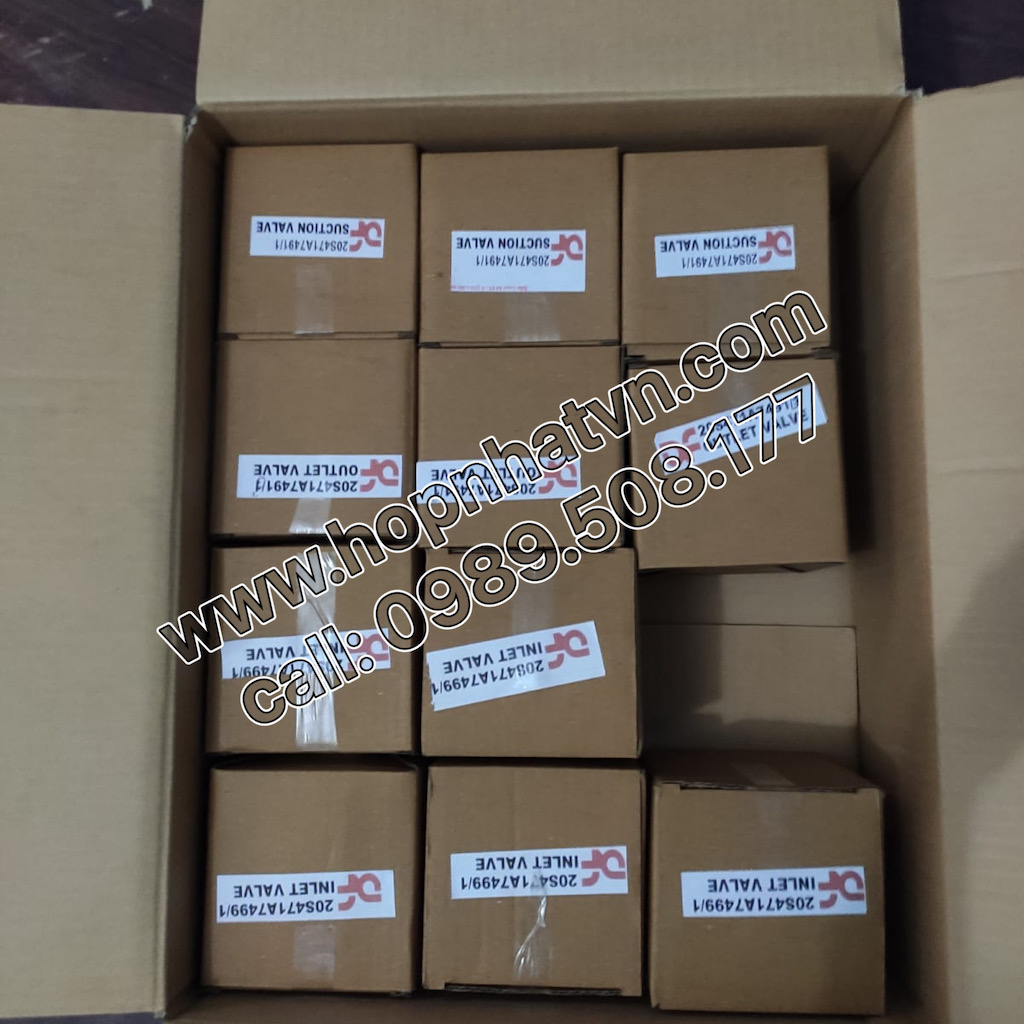

| Valves: |
| Part number |
Description |
Qty |
| 20S471a7480wde |
1st stage inlet valve |
4 |
| 20S473a7479wde |
1st stage outlet valve |
4 |
| 20S47170/3775 |
2nd stage inlet valve |
1 |
| 20S47370/3776 |
2nd stage outlet valve |
1 |
| 20S471a4040we |
3rd stage inlet valve |
1 |
| 20S473a4041we |
3rd stage outlet valve |
1 |
| 20K101a7480wde |
1st stage inlet valve repair kit |
4 |
| 20K103a7479wde |
1st stage outlet valve repair kit |
4 |
| 20K10170/3775 |
2nd stage inlet valve repair kit |
1 |
| 20K10370/3776 |
2nd stage outlet valve repair kit |
1 |
| 20K101a4040we |
3rd stage inlet valve repair kit |
1 |
| 20K103a4041we |
3rd stage outlet valve repair kit |
1 |
| Various: |
| Part number |
Description |
Qty |
| 20C171023 |
Suction filter cartridge |
1 |
| 7FE331E9-32-11 |
Dryer air filter cartridge(s) |
3 |
| 7FJ31478002219 |
Dryer filter O-ring |
3 |
| 20P500BEK13/45 |
Repair kit Beko 2nd stage |
1 |
| 20P500BEK13/45 |
Repair kit Beko air tank |
1 |
| 20C7914SPC50STR |
Belts |
1 |
| Connecting rods |
| Part number |
Description |
Qty |
| 20J300A8501/4 |
Crankcase visit door gasket |
1 |
| 20J300A8502/0 |
Crosshead visit door gasket |
4 |
| 20C803A4100SAMR |
Big end bearing |
2 |
| 20V323A7402 |
Connecting rod screws |
4 |
| 20V321A896012 |
Safety pin/screw |
4 |
| 20E221A8500/8 |
Safety nut |
4 |
| Coolers |
| Part number |
Description |
Qty |
| 20B105A4523/1V |
1st stage cooler gasket |
4 |
| 20J300A8501/7 |
Outlet 1st stage gasket |
1 |
| 20J309A90962 |
Intlet 2nd stage gasket |
1 |
| 20F10267/910 |
1st stage pipe bundle |
1 |
| 20R24067/910 |
1st stage cooler |
1 |
| 20B105A4524/2V |
2nd stage cooler gasket |
4 |
| 20J309A90958 |
Intlet 3rd stage gasket |
2 |
| 20F10267/903 |
2nd stage pipe bundle |
1 |
| 20R24067/903 |
2nd stage cooler |
1 |
| 20B105A4524/2V |
3rd stage cooler gasket |
4 |
| 20J309A90960 |
Air tank inlet gasket |
1 |
| 20J309A90957 |
Air tank outlet gasket |
1 |
| 40F10267/908 |
Final cooler pipe bundle |
1 |
| 20R24067/908 |
2nd stage cooler |
1 |
